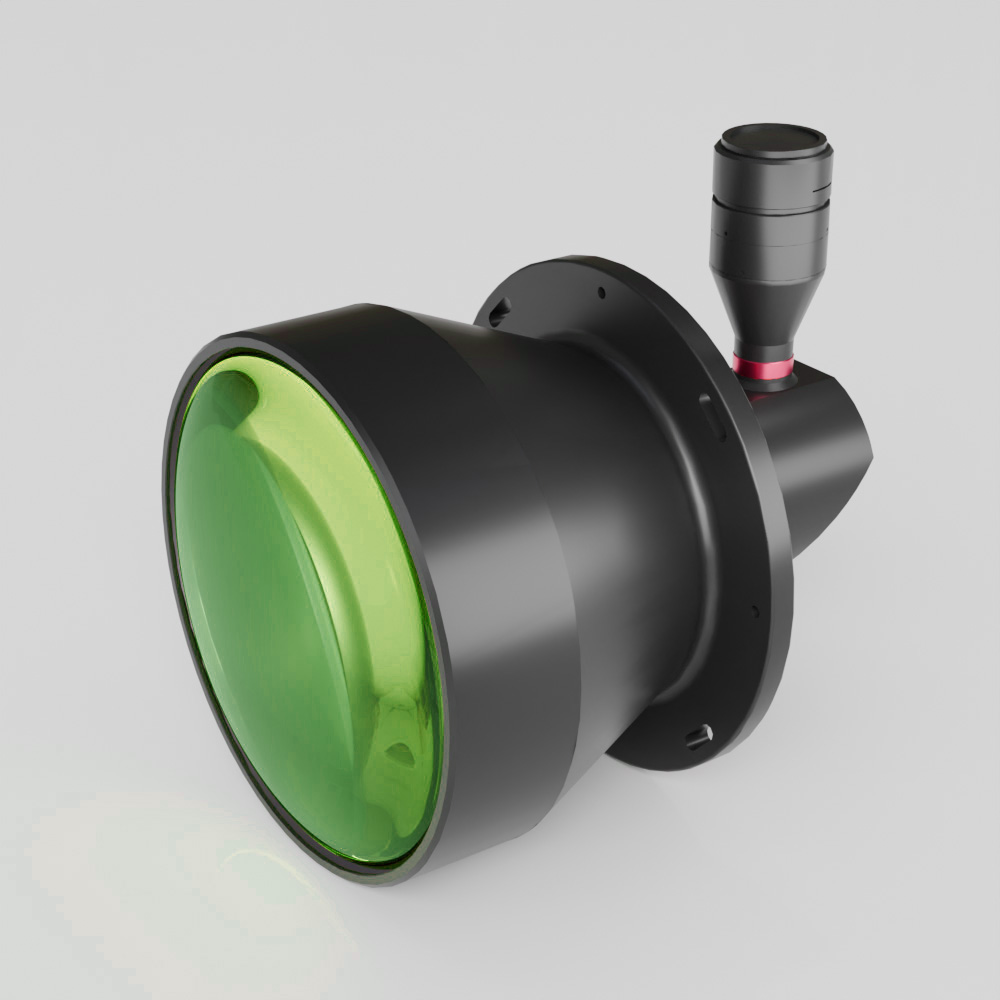

39mm 0.151X 90° Matrix Bi-Telecentric Lenses | DTCM71M-258-T90-M58-AL COOLENS®

Model NO.    :

DTCM71M-258-T90-M58-AL

Image Circle: 39mm
Magnification: 0.151X
FOV: 258mm
WD: 338±5mm
NA: 0.151
Mount: M58
Type: 90° Matrix Bi-Telecentric Lenses

Model No. DTCM71M-258-T90-M58-AL Object Field of View(Φmm) 258
Image Circle Diameter (Φmm) 39 Best Aperture(f/#) 6.5
Magnification(x) 0.151 MTF30 (lp/mm) >130
Working Distance(mm) 338±5 Depth of Field(mm) ±19.3@F11
NA 0.151 Distortion Typical(% max) <0.1
Type 90° Matrix Bi-Telecentric Lenses Telecentricity Typical (°max) <0.1
Length of I/O(mm) 883±5
Mechanical Specifications
Mount M58
Length (mm) 355.2

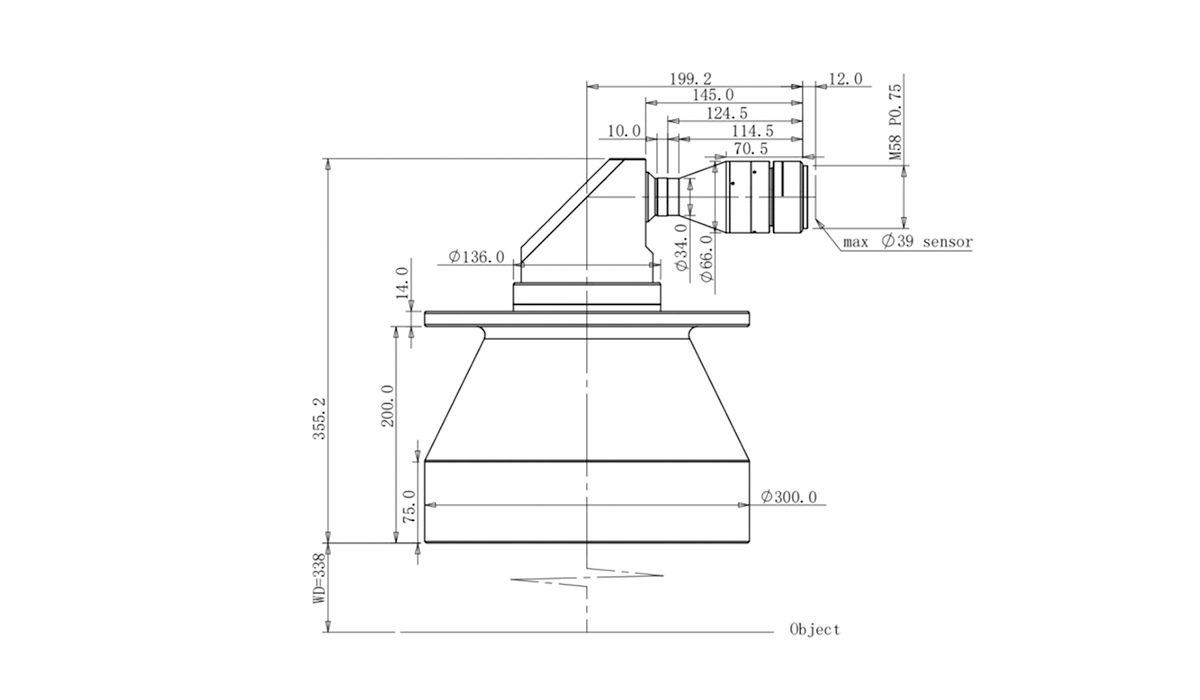

Dimensions
