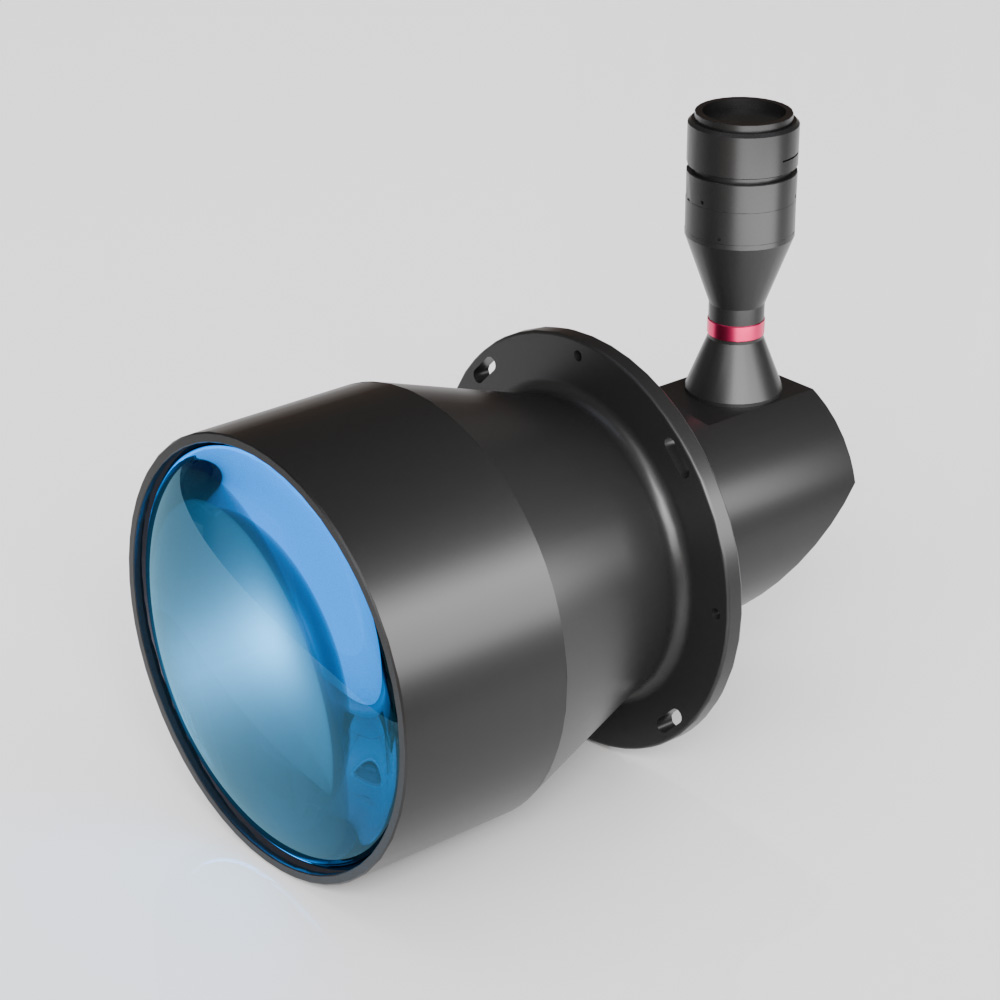

33(2″)mm 0.153X 90° Matrix Bi-Telecentric Lenses | DTCM210-216-T90-M58-AL COOLENS®
Model NO. :
DTCM210-216-T90-M58-AL
Image Circle: 33(2″)mm
Magnification: 0.153X
FOV: 216mm
WD: 372±5mm
NA: 0.00984
Mount: M58
Type: 90° Matrix Bi-Telecentric Lenses
Model No. | DTCM210-216-T90-M58-AL | Object Field of View(Φmm) | 216 | ||||
Image Circle Diameter (Φmm) | 33(2") | Best Aperture(f/#) | 7.8 | ||||
Magnification(x) | 0.153 | MTF30 (lp/mm) | >115 | ||||
Working Distance(mm) | 372±5 | Depth of Field(mm) | ±27.3@F16 | ||||
NA | 0.00984 | Distortion Typical(% max) | <0.1 | ||||
Type | 90° Matrix Bi-Telecentric Lenses | Telecentricity Typical (°max) | <0.1 | ||||
Length of I/O(mm) | 980±5 | ||||||

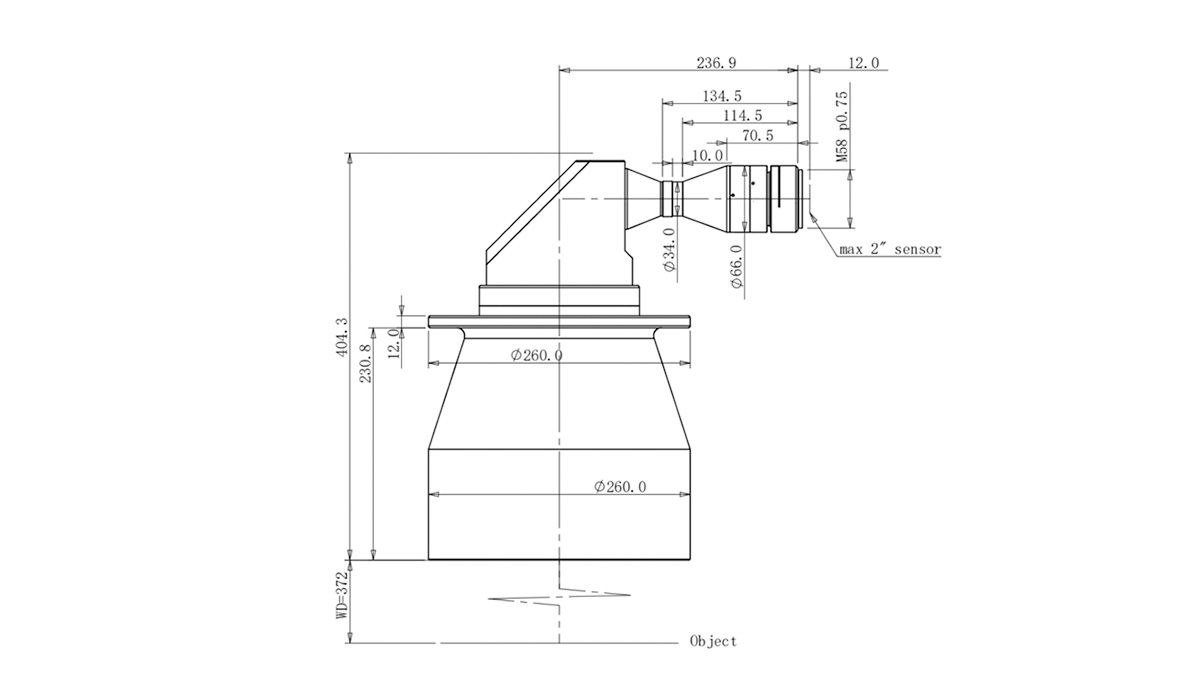

Mechanical Specifications | |||||||
Mount | M58 | ||||||
Length (mm) | 404.3 |
