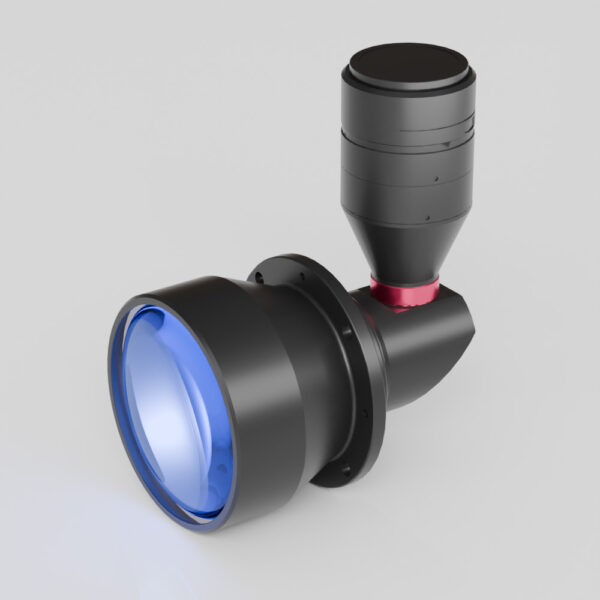

29(1.75″)mm 0.322X 90° Matrix Bi-Telecentric Lenses | DTCM175-90-T90-M58-AL COOLENS®

Model NO.    :

DTCM175-90-T90-M58-AL

Image Circle: 29(1.75″)mm
Magnification: 0.322X
FOV: 90mm
WD: 208±3mm
NA: 0.02125
Mount: M58
Type: 90° Matrix Bi-Telecentric Lenses

Model No. DTCM175-90-T90-M58-AL Object Field of View(Φmm) 90
Image Circle Diameter (Φmm) 29(1.75") Best Aperture(f/#) 8.5
Magnification(x) 0.322 MTF30 (lp/mm) >100
Working Distance(mm) 208±3 Depth of Field(mm) ±6.1@F16
NA 0.02125 Distortion Typical(% max) <0.1
Type 90° Matrix Bi-Telecentric Lenses Telecentricity Typical (°max) <0.1
Length of I/O(mm) 508±3
Mechanical Specifications
Mount M58
Length (mm) 163.3

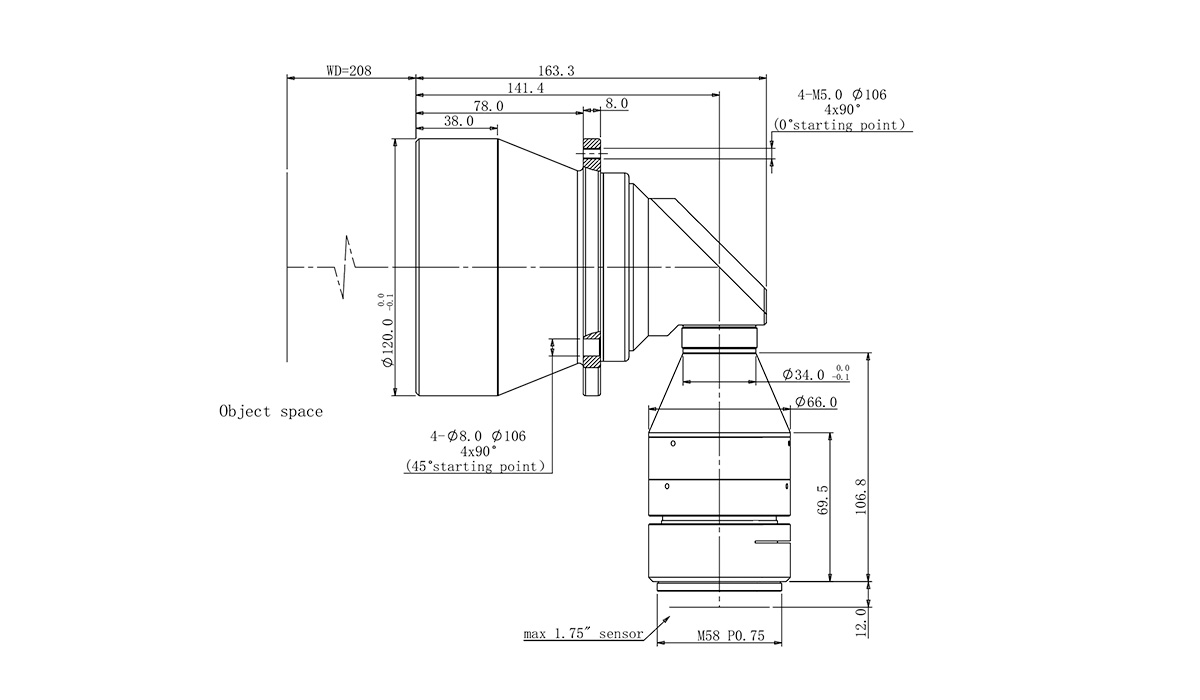

Dimensions
