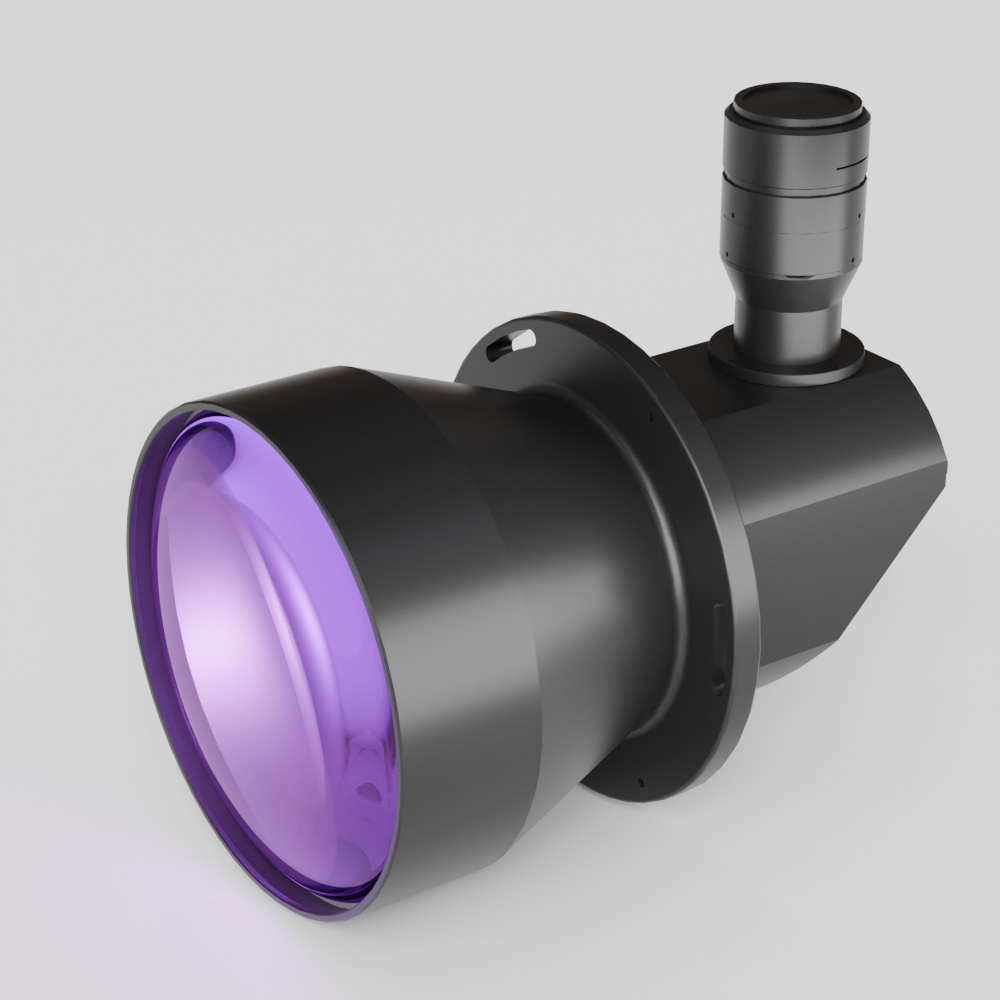

29(1.75″)mm 0.153X 90° Matrix Bi-Telecentric Lenses | DTCM175-190H-T90-M58-AL COOLENS®

Model NO.    :

DTCM175-190H-T90-M58-AL

Image Circle: 29(1.75″)mm
Magnification: 0.153X
FOV: 190mm
WD: 330±5mm
NA :0.01119
Mount: M58
Type: 90° Matrix Bi-Telecentric Lenses

Model No. DTCM175-190H-T90-M58-AL Object Field of View(Φmm) 190
Image Circle Diameter (Φmm) 29(1.75") Best Aperture(f/#) 6.8
Magnification(x) 0.153 MTF30 (lp/mm) >135
Working Distance(mm) 330±5 Depth of Field(mm) ±27.3@F16
NA 0.01119 Distortion Typical(% max) <0.1
Type 90° Matrix Bi-Telecentric Lenses Telecentricity Typical (°max) <0.1
Length of I/O(mm) 827±5
Mechanical Specifications
Mount M58
Length (mm) 329.2

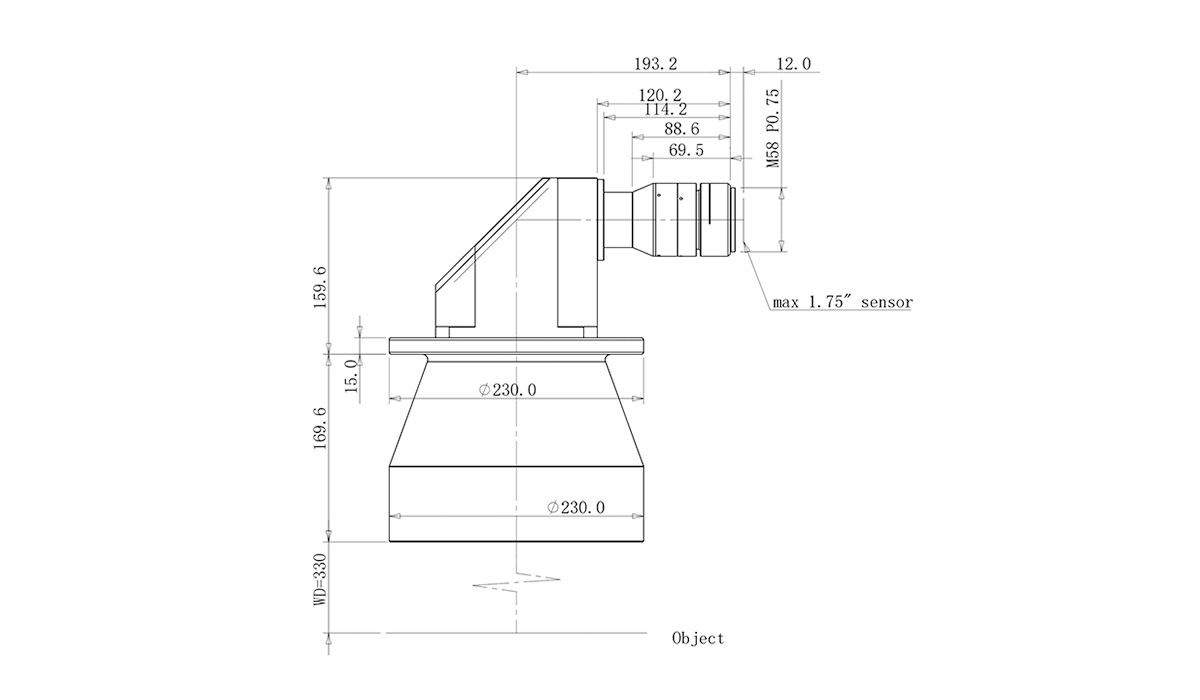

Dimensions
