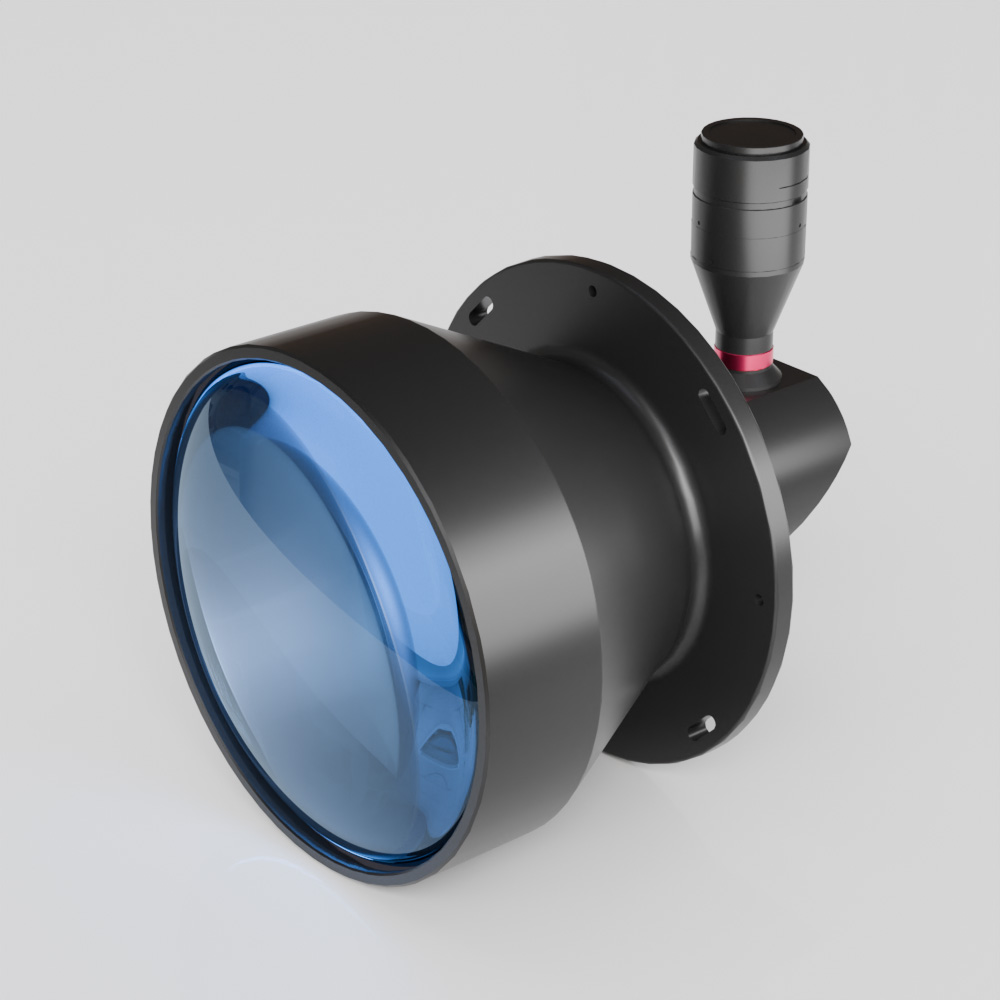

33(2″)mm 0.128X 90° Matrix Bi-Telecentric Lenses | DTCM210-258-T90-M58-AL COOLENS®

Model NO.    :

DTCM210-258-T90-M58-AL

Image Circle: 33(2″)mm
Magnification: 0.128X
FOV: 258mm
WD: 338±5mm
NA: 0.00824
Mount: M58
Type: 90° Matrix Bi-Telecentric Lenses

Model No. DTCM210-258-T90-M58-AL Object Field of View(Φmm) 258
Image Circle Diameter (Φmm) 33(2") Best Aperture(f/#) 7.8
Magnification(x) 0.128 MTF30 (lp/mm) >110
Working Distance(mm) 338±5 Depth of Field(mm) ±39.1@F16
NA 0.00824 Distortion Typical(% max) <0.1
Type 90° Matrix Bi-Telecentric Lenses Telecentricity Typical (°max) <0.1
Length of I/O(mm) 867±5
Mechanical Specifications
Mount M58
Length (mm) 355.2

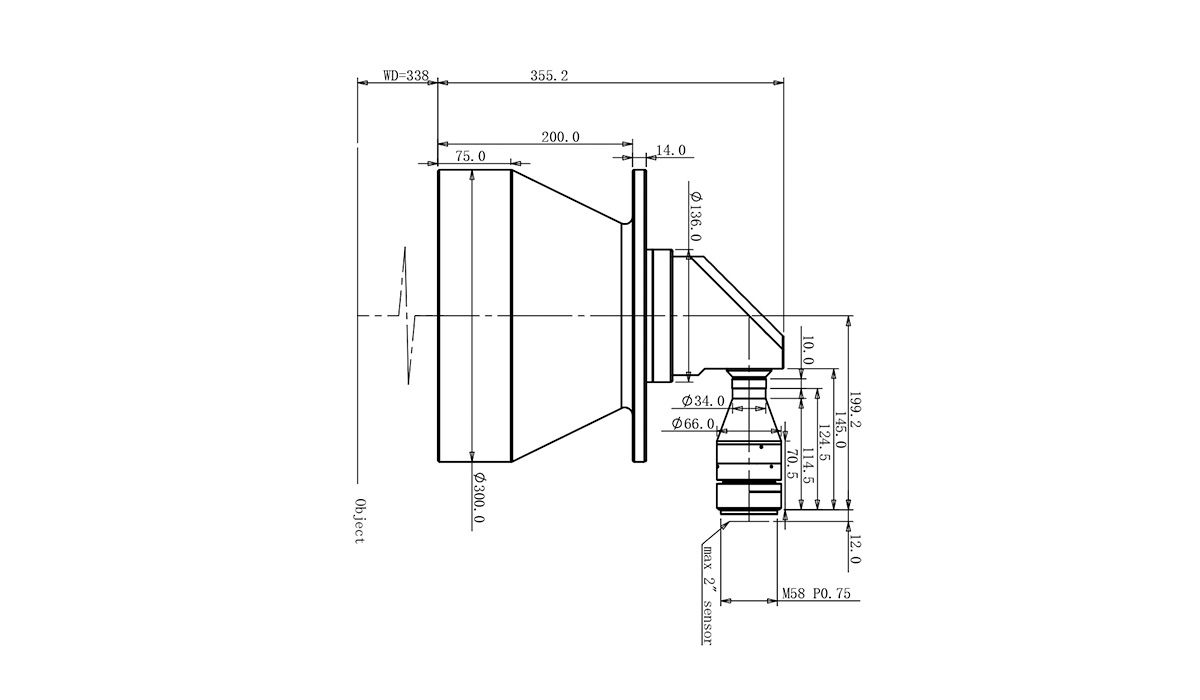

Dimensions
