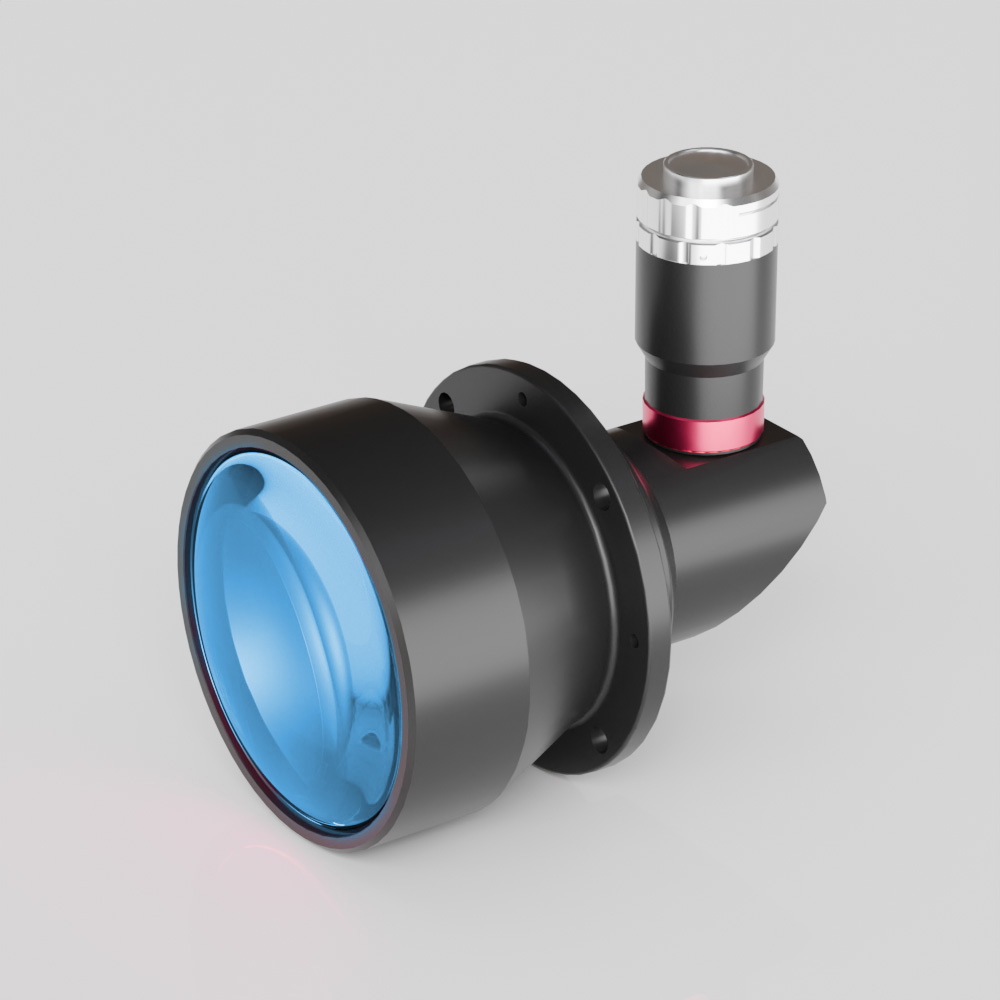

18.4(1.1″)mm 0.204X 90° Matrix Bi-Telecentric Lenses | DTCM111-90-T90-AL COOLENS®

Model NO.    :

DTCM111-90-T90-AL

Image Circle: 18.4(1.1″)mm
Magnification: 0.204X
FOV: 90mm
WD: 208±3mm
NA: 0.01653
Mount: C
Type: 90° Matrix Bi-Telecentric Lenses

Model No. DTCM111-90-T90-AL Object Field of View(Φmm) 90
Image Circle Diameter (Φmm) 18.4(1.1") Best Aperture(f/#) 6.2
Magnification(x) 0.204 MTF30 (lp/mm) >145
Working Distance(mm) 208±3 Depth of Field(mm) ±10.5@F11
NA 0.01653 Distortion Typical(% max) <0.1
Type 90° Matrix Bi-Telecentric Lenses Telecentricity Typical (°max) <0.1
Length of I/O(mm) 472±3
Mechanical Specifications
Mount C
Length (mm) 163.3

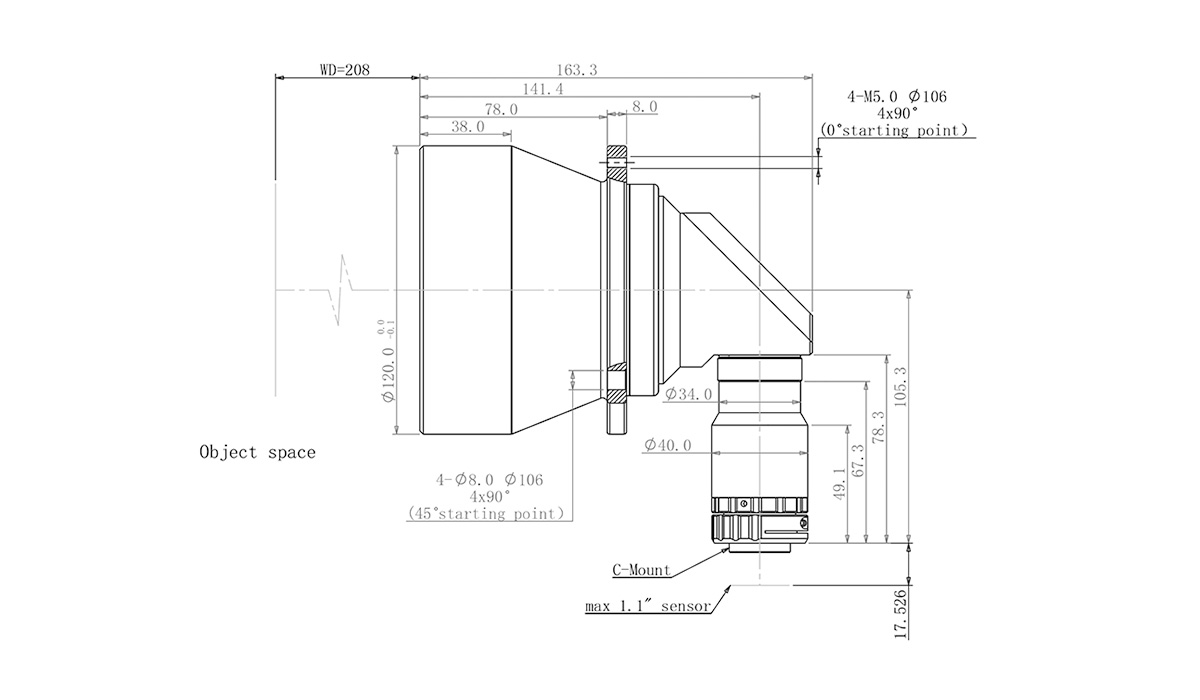

Dimensions
