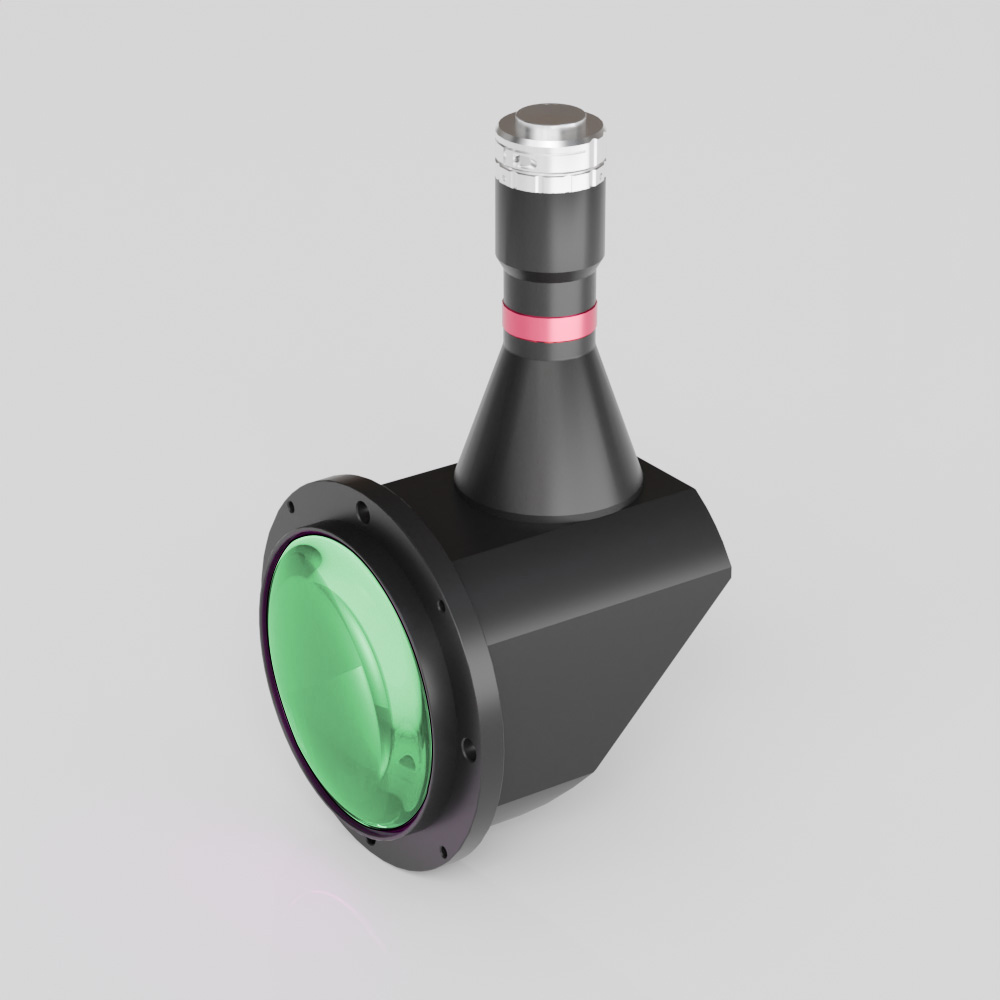

18.4(1.1″)mm 0.184X 90° Matrix Bi-Telecentric Lenses | DTCM111-100H-T90-AL COOLENS®

Model NO.    :

DTCM111-100H-T90-AL

Image Circle: 18.4(1.1″)mm
Magnification: 0.184X
FOV: 100mm
WD: 238±4mm
NA: 0.01275
Mount: C
Type: 90° Matrix Bi-Telecentric Lenses

Model No. DTCM111-100H-T90-AL Object Field of View(Φmm) 100
Image Circle Diameter (Φmm) 18.4(1.1") Best Aperture(f/#) 6.2
Magnification(x) 0.184 MTF30 (lp/mm) >120
Working Distance(mm) 238±4 Depth of Field(mm) ±13.0@F11
NA 0.01275 Distortion Typical(% max) <0.1
Type 90° Matrix Bi-Telecentric Lenses Telecentricity Typical (°max) <0.1
Length of I/O(mm) 545±4
Mechanical Specifications
Mount C
Length (mm) 235.8

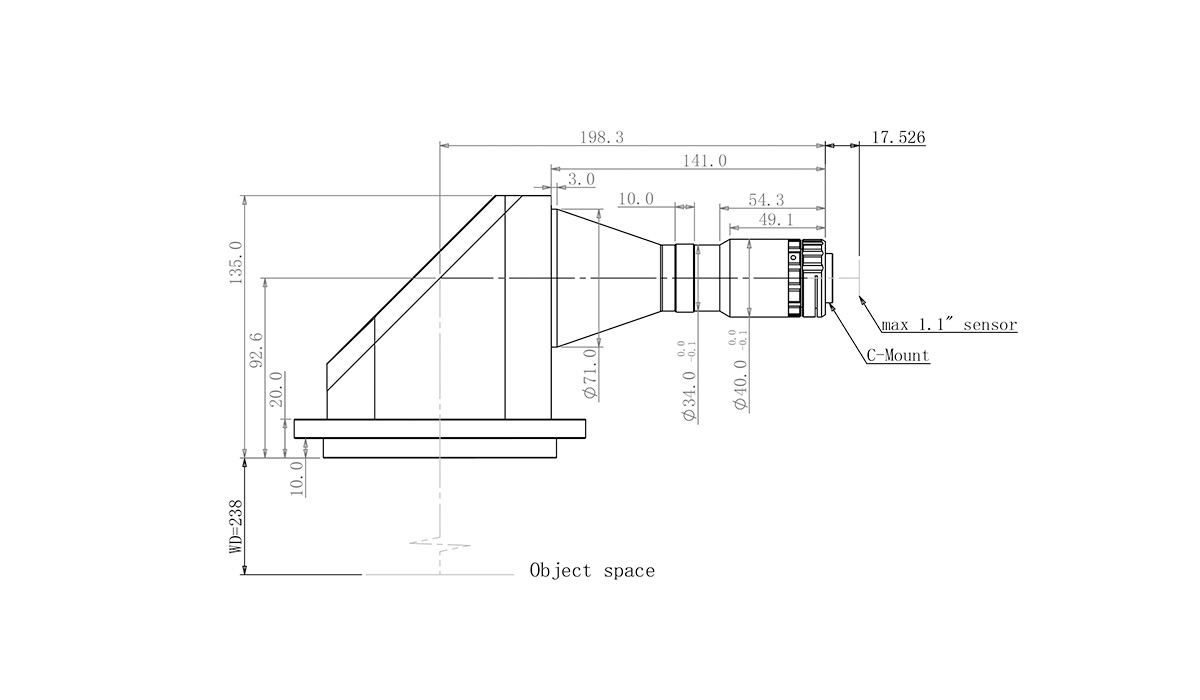

Dimensions
