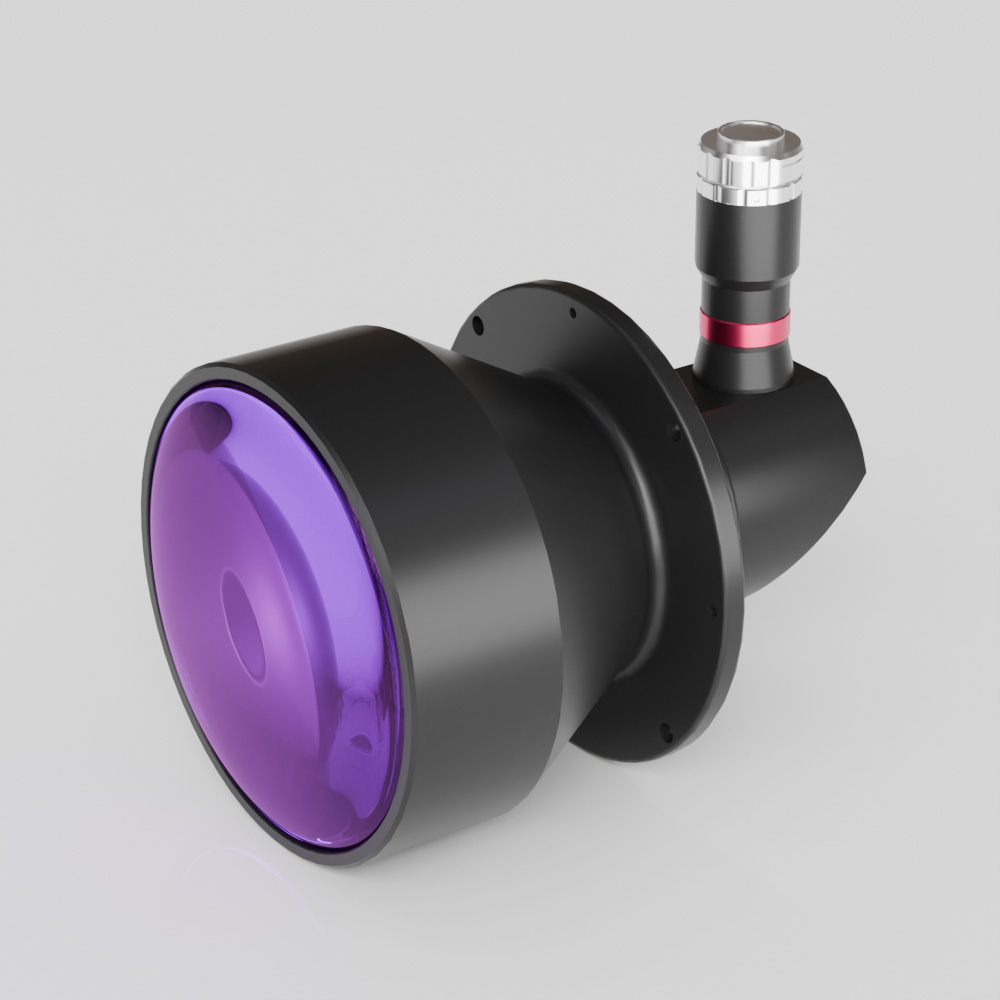

18.4(1.1″)mm 0.123X 90° Matrix Bi-Telecentric Lenses | DTCM111-150-T90-AL COOLENS®

Model NO.    :

DTCM111-150-T90-AL

Image Circle: 18.4(1.1″)mm
Magnification: 0.123X
FOV: 150mm
WD: 300±5mm
NA: 0.00992
Mount: C
Type: 90° Matrix Bi-Telecentric Lenses

Model No. DTCM111-150-T90-AL Object Field of View(Φmm) 150
Image Circle Diameter (Φmm) 18.4(1.1") Best Aperture(f/#) 6.2
Magnification(x) 0.123 MTF30 (lp/mm) >145
Working Distance(mm) 300±5 Depth of Field(mm) ±29@F11
NA 0.00992 Distortion Typical(% max) <0.1
Type 90° Matrix Bi-Telecentric Lenses Telecentricity Typical (°max) <0.1
Length of I/O(mm) 671±5
Mechanical Specifications
Mount C
Length (mm) 242.3

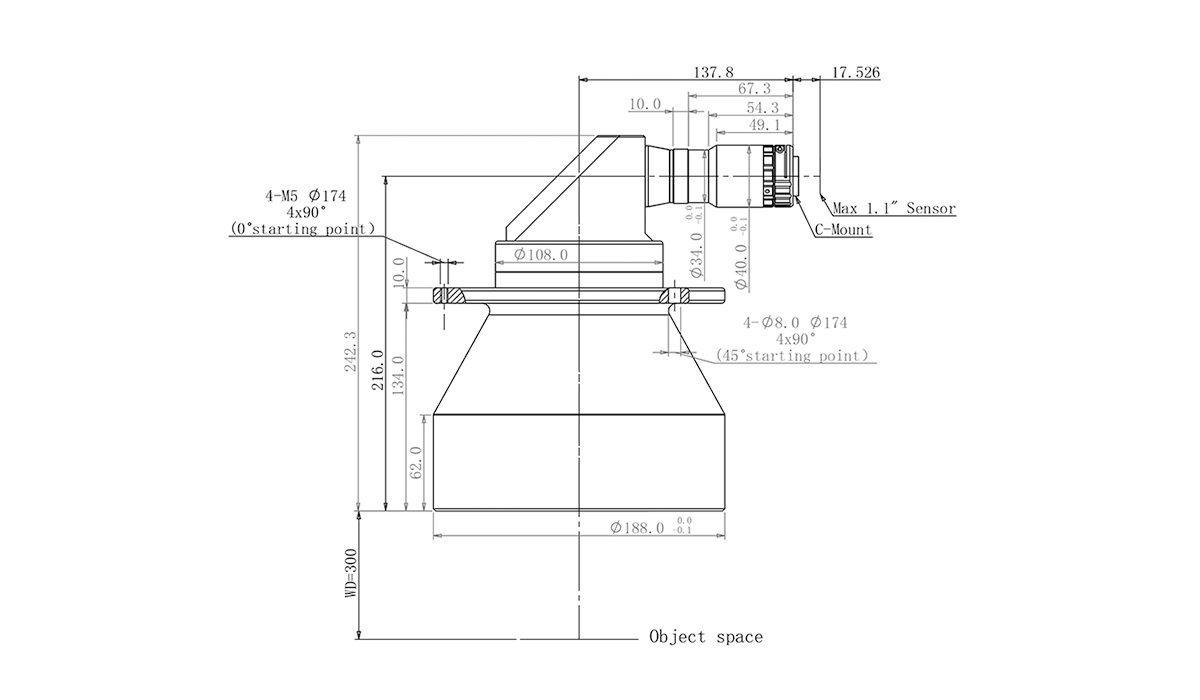

Dimensions
