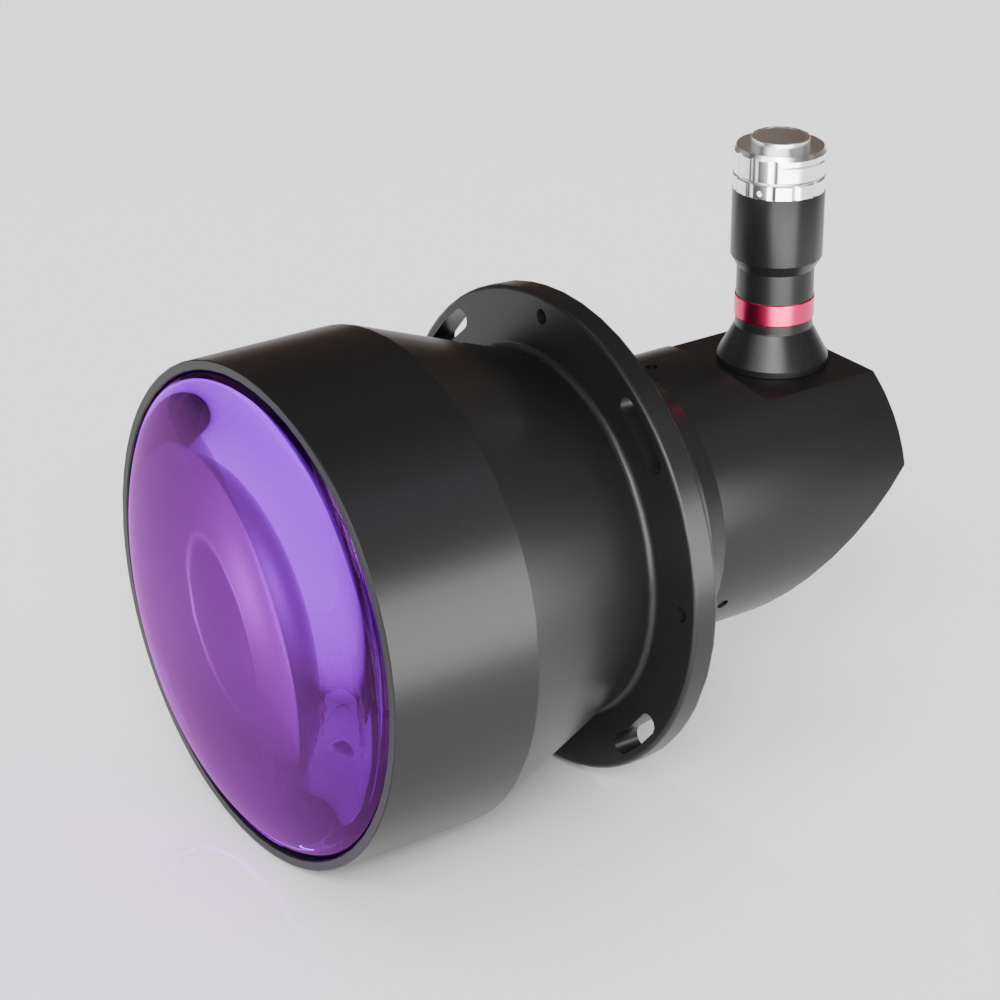

18.4(1.1″)mm 0.108X 90° Matrix Bi-Telecentric Lenses | DTCM111-170-T90-AL COOLENS®

Model NO.    :

DTCM111-170-T90-AL

Image Circle: 18.4(1.1″)mm
Magnification: 0.108X
FOV: 170mm
WD: 318±5mm
NA: 0.00875
Mount: C
Type: 90° Matrix Bi-Telecentric Lenses

Model No. DTCM111-170-T90-AL Object Field of View(Φmm) 170
Image Circle Diameter (Φmm) 18.4(1.1") Best Aperture(f/#) 6.2
Magnification(x) 0.108 MTF30 (lp/mm) >150
Working Distance(mm) 318±5 Depth of Field(mm) ±37.7@F11
NA 0.00875 Distortion Typical(% max) <0.1
Type 90° Matrix Bi-Telecentric Lenses Telecentricity Typical (°max) <0.1
Length of I/O(mm) 751±5
Mechanical Specifications
Mount C
Length (mm) 296

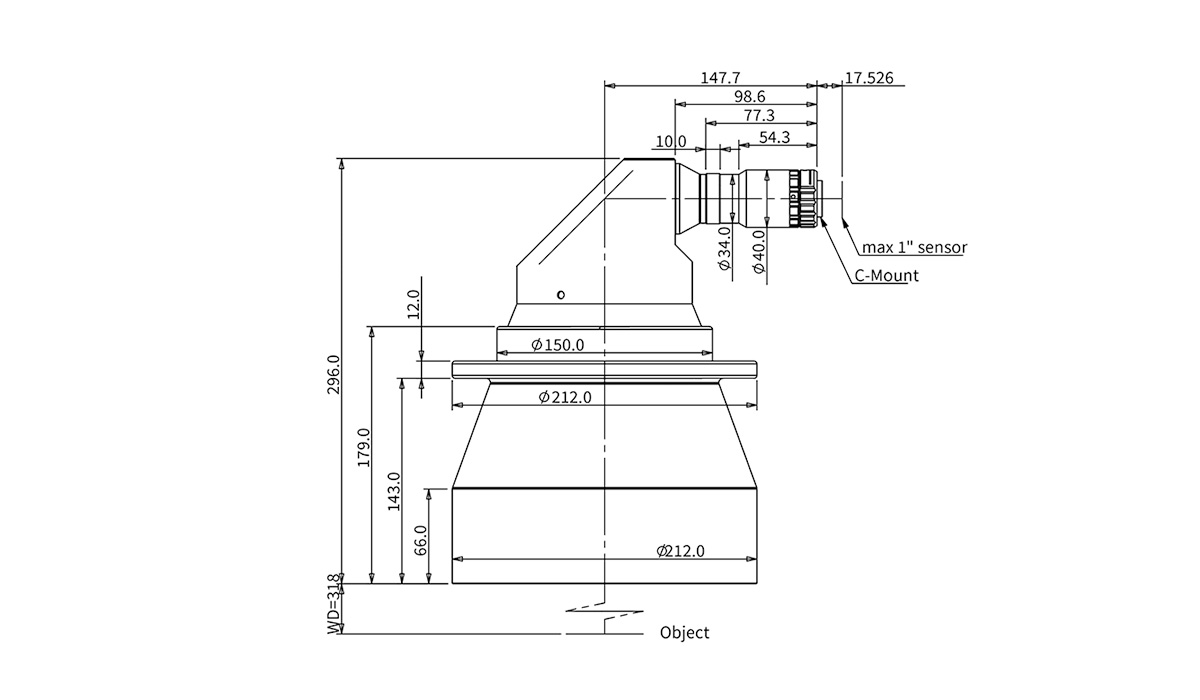

Dimensions
