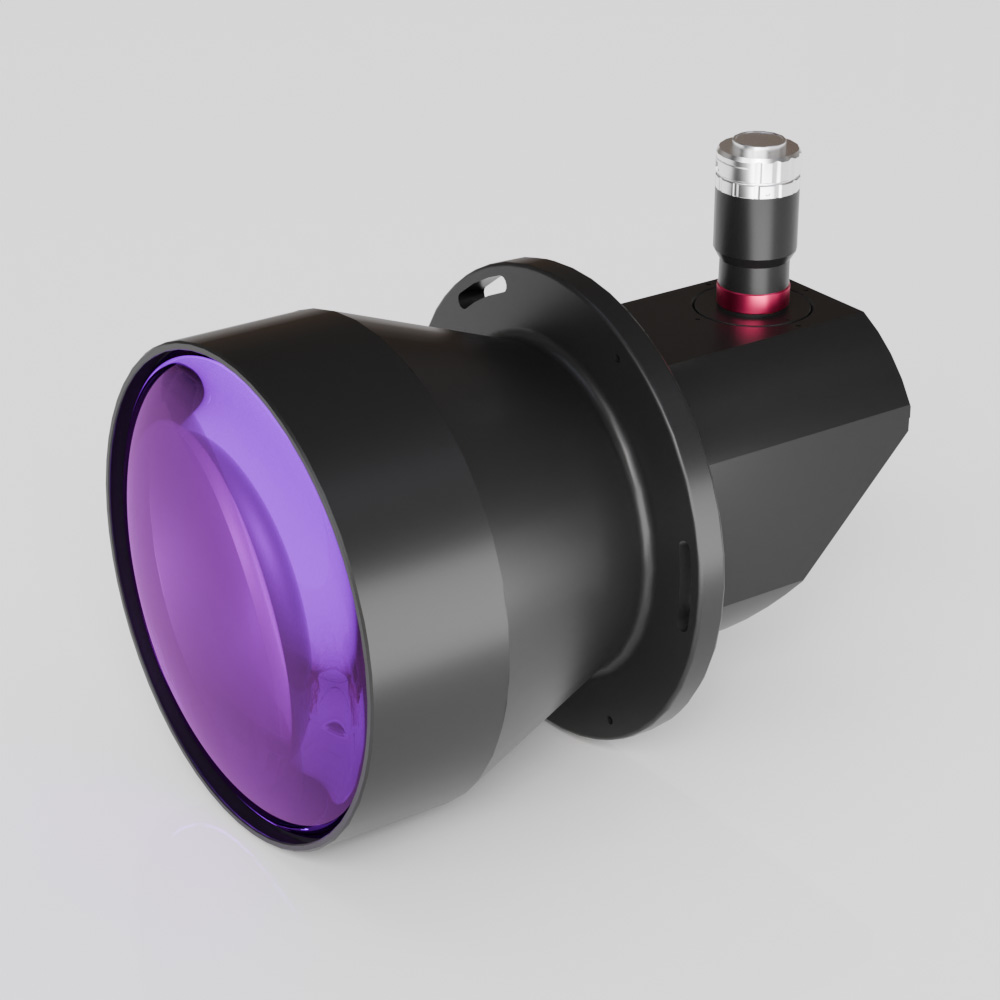

18.4(1.1″)mm 0.097X 90° Matrix Bi-Telecentric Lenses | DTCM111-190H-T90-AL COOLENS®
Model NO. :
DTCM111-190H-T90-AL
Image Circle: 18.4(1.1″)mm
Magnification: 0.097X
FOV: 190mm
WD: 330±5mm
NA: 0.00783
Mount: C
Type: 90° Matrix Bi-Telecentric Lenses
Model No. | DTCM111-190H-T90-AL | Object Field of View(Φmm) | 190 | ||||
Image Circle Diameter (Φmm) | 18.4(1.1") | Best Aperture(f/#) | 6.2 | ||||
Magnification(x) | 0.097 | MTF30 (lp/mm) | >150 | ||||
Working Distance(mm) | 330±5 | Depth of Field(mm) | ±46.7@F11 | ||||
NA | 0.00783 | Distortion Typical(% max) | <0.1 | ||||
Type | 90° Matrix Bi-Telecentric Lenses | Telecentricity Typical (°max) | <0.1 | ||||
Length of I/O(mm) | 791±5 | ||||||

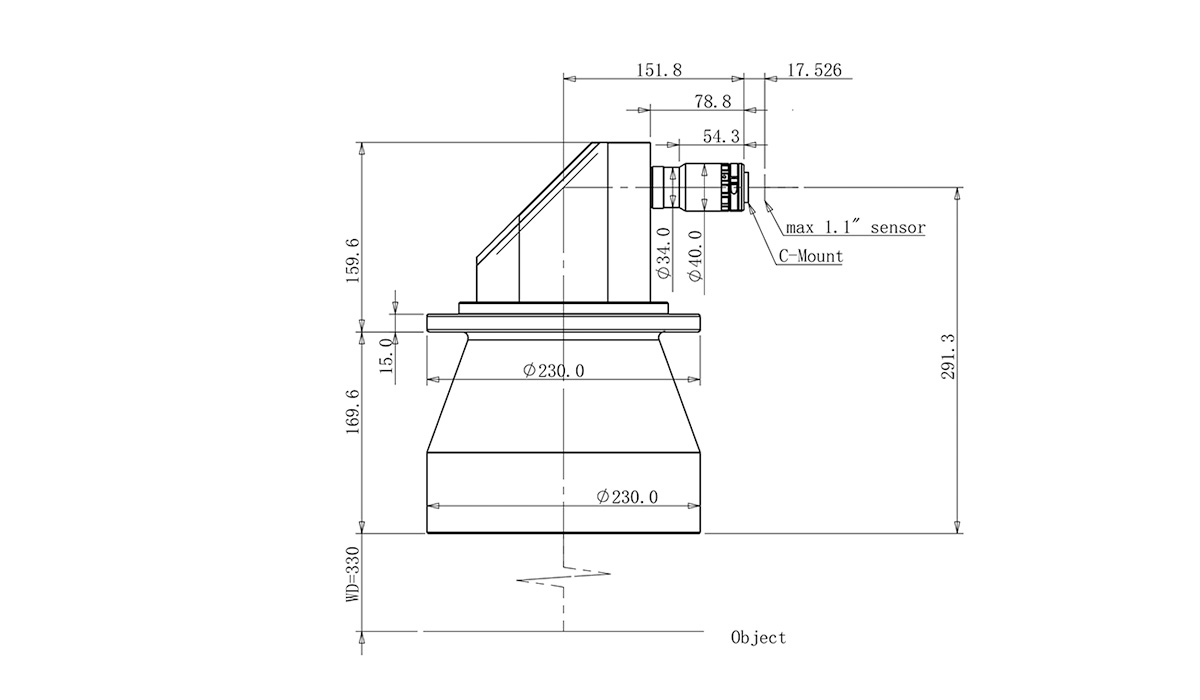

Mechanical Specifications | |||||||
Mount | C | ||||||
Length (mm) | 169.6 |
