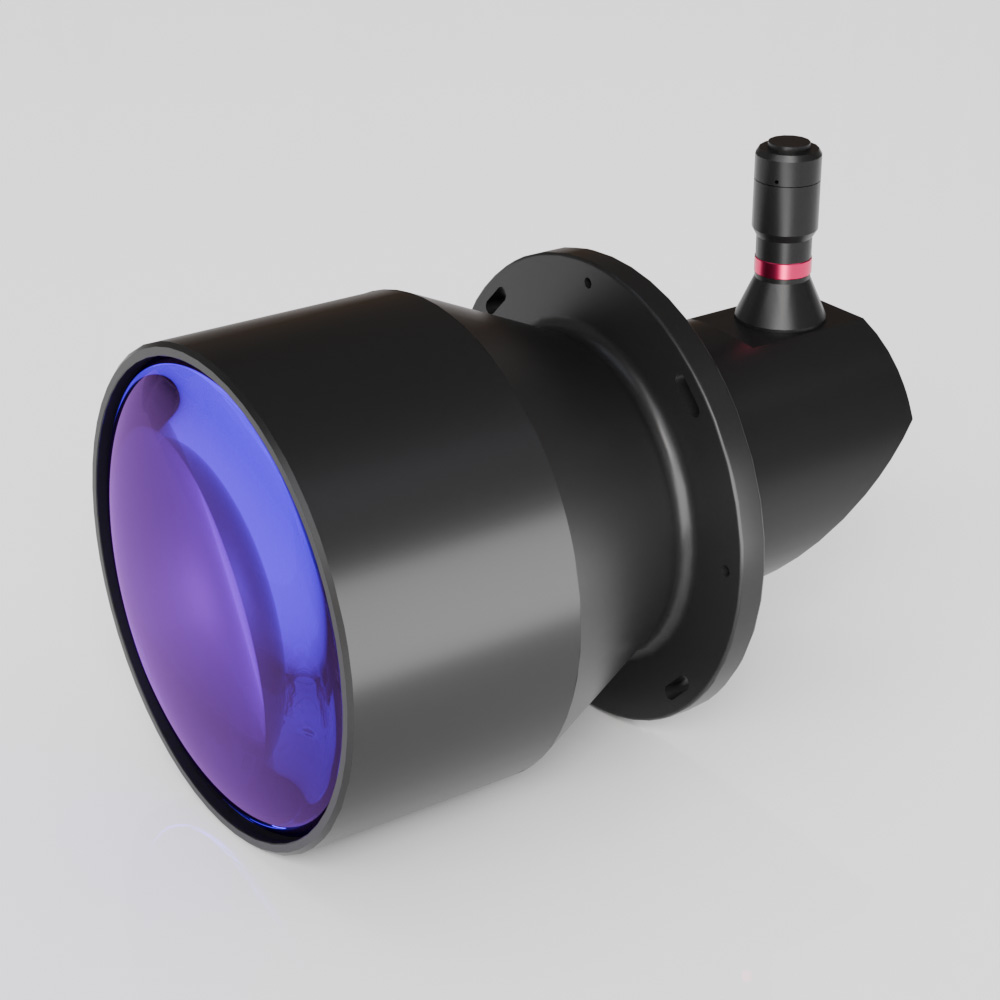

18.4(1.1″)mm 0.077X 90° Matrix Bi-Telecentric Lenses | DTCM111-240H-T90-AL COOLENS®

Model NO.    :

DTCM111-240H-T90-AL

Image Circle: 18.4(1.1″)mm
Magnification: 0.077X
FOV: 240mm
WD: 410±6mm
NA: 0.0062
Mount: C
Type: 90° Matrix Bi-Telecentric Lenses

Model No. DTCM111-240H-T90-AL Object Field of View(Φmm) 240
Image Circle Diameter (Φmm) 18.4(1.1") Best Aperture(f/#) 6.2
Magnification(x) 0.077 MTF30 (lp/mm) >150
Working Distance(mm) 410±6 Depth of Field(mm) ±109@F16
NA 0.0062 Distortion Typical(% max) <0.1
Type 90° Matrix Bi-Telecentric Lenses Telecentricity Typical (°max) <0.1
Length of I/O(mm) 1012±6
Mechanical Specifications
Mount C
Length (mm) 441.6

Dimensions
