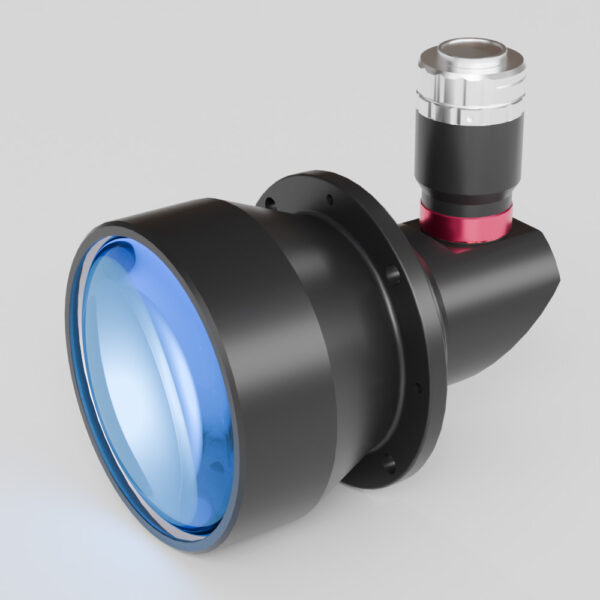

16.6(1″)mm 0.184X 90° Matrix Bi-Telecentric Lenses | DTCM110-90-T90-AL COOLENS®

Model NO.    :

DTCM110-90-T90-AL

Image Circle: 16.6(1″)mm
Magnification: 0.184X
FOV: 90mm
WD: 208±3mm
NA: 0.01417
Mount: C
Type: 90° Matrix Bi-Telecentric Lenses

Model No. DTCM110-90-T90-AL Object Field of View(Φmm) 90
Image Circle Diameter (Φmm) 16.6(1") Best Aperture(f/#) 6.5
Magnification(x) 0.184 MTF30 (lp/mm) >135
Working Distance(mm) 208±3 Depth of Field(mm) ±18.9@F16
NA 0.01417 Distortion Typical(% max) <0.1
Type 90° Matrix Bi-Telecentric Lenses Telecentricity Typical (°max) <0.1
Length of I/O(mm) 461±3
Mechanical Specifications
Mount C
Length (mm) 163.3

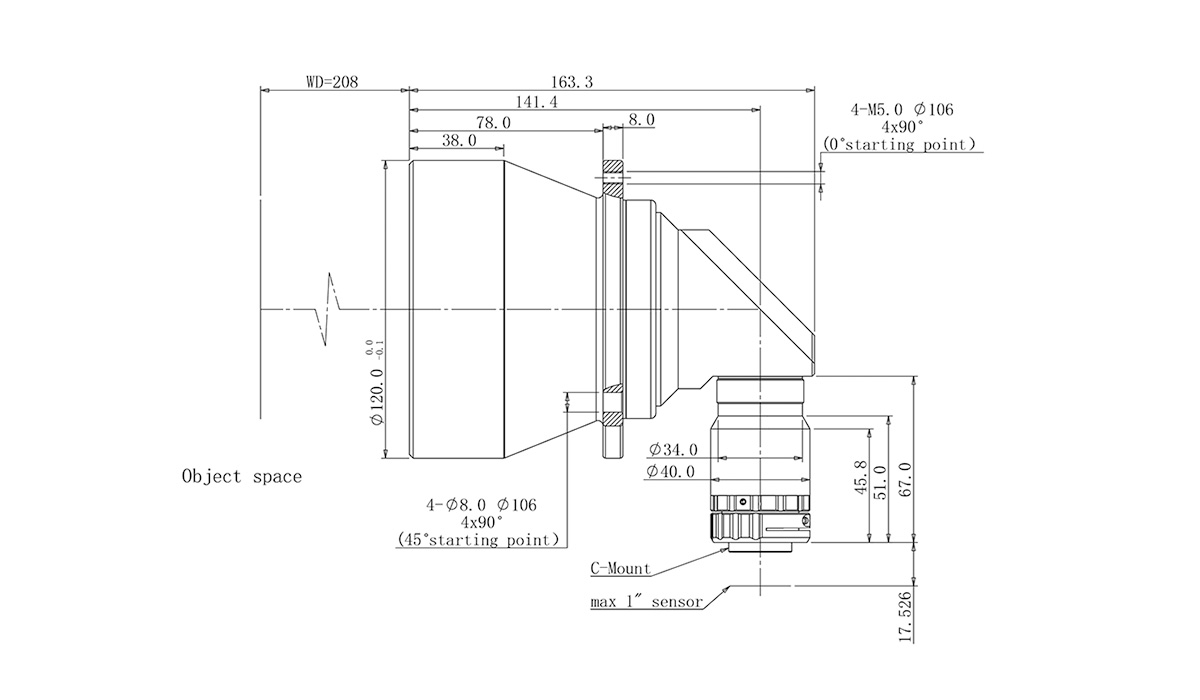

Dimensions

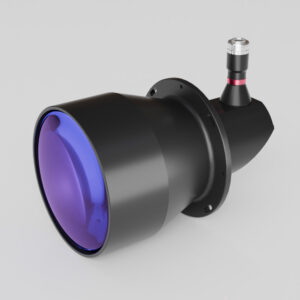

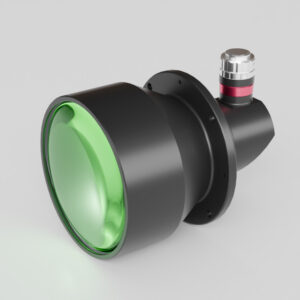

Recently Viewed Products
