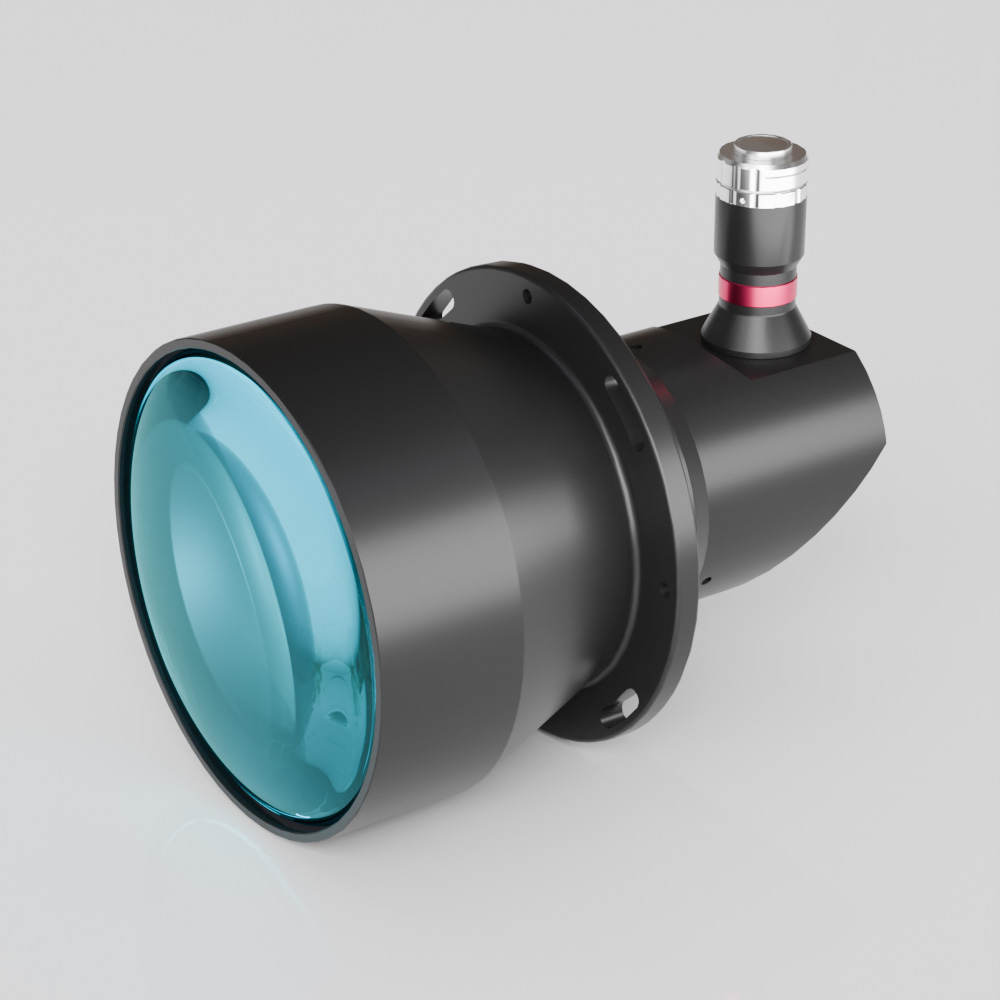

16.6(1″)mm 0.098X 90° Matrix Bi-Telecentric Lenses | DTCM110-170-T90-AL COOLENS®
Model NO. :
DTCM110-170-T90-AL
Image Circle: 16.6(1″)mm
Magnification: 0.098X
FOV: 170mm
WD: 318±5mm
NA: 0.0075
Mount: C
Type: 90° Matrix Bi-Telecentric Lenses
Model No. | DTCM110-170-T90-AL | Object Field of View(Φmm) | 170 | ||||
Image Circle Diameter (Φmm) | 16.6(1") | Best Aperture(f/#) | 6.5 | ||||
Magnification(x) | 0.098 | MTF30 (lp/mm) | >140 | ||||
Working Distance(mm) | 318±5 | Depth of Field(mm) | ±66.6@F16 | ||||
NA | 0.0075 | Distortion Typical(% max) | <0.1 | ||||
Type | 90° Matrix Bi-Telecentric Lenses | Telecentricity Typical (°max) | <0.1 | ||||
Length of I/O(mm) | 740±5 | ||||||

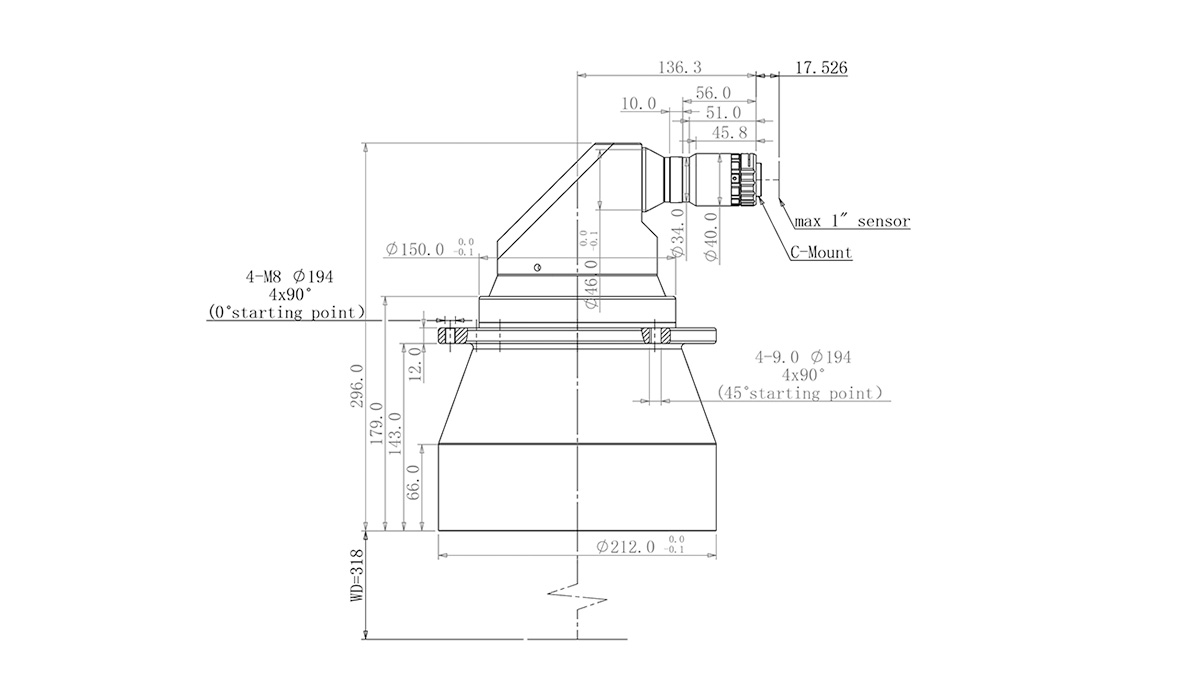

Mechanical Specifications | |||||||
Mount | C | ||||||
Length (mm) | 296 |
