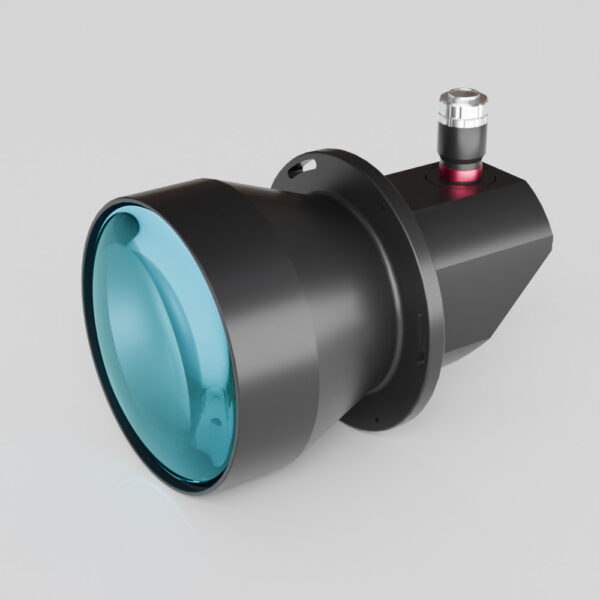

16.6(1″)mm 0.087X 90° Matrix Bi-Telecentric Lenses | DTCM110-190H-T90-AL COOLENS®
Model NO. :
DTCM110-190H-T90-AL
Image Circle: 16.6(1″)mm
Magnification: 0.087X
FOV: 190mm
WD: 330±5mm
NA: 0.00671
Mount: C
Type: 90° Matrix Bi-Telecentric Lenses
Model No. | DTCM110-190H-T90-AL | Object Field of View(Φmm) | 190 | ||||
Image Circle Diameter (Φmm) | 16.6(1") | Best Aperture(f/#) | 6.5 | ||||
Magnification(x) | 0.087 | MTF30 (lp/mm) | >140 | ||||
Working Distance(mm) | 330±5 | Depth of Field(mm) | ±84.6@F16 | ||||
NA | 0.00671 | Distortion Typical(% max) | <0.1 | ||||
Type | 90° Matrix Bi-Telecentric Lenses | Telecentricity Typical (°max) | <0.1 | ||||
Length of I/O(mm) | 779±5 | ||||||
Mechanical Specifications | |||||||
Mount | C | ||||||
Length (mm) | 329.2 |
