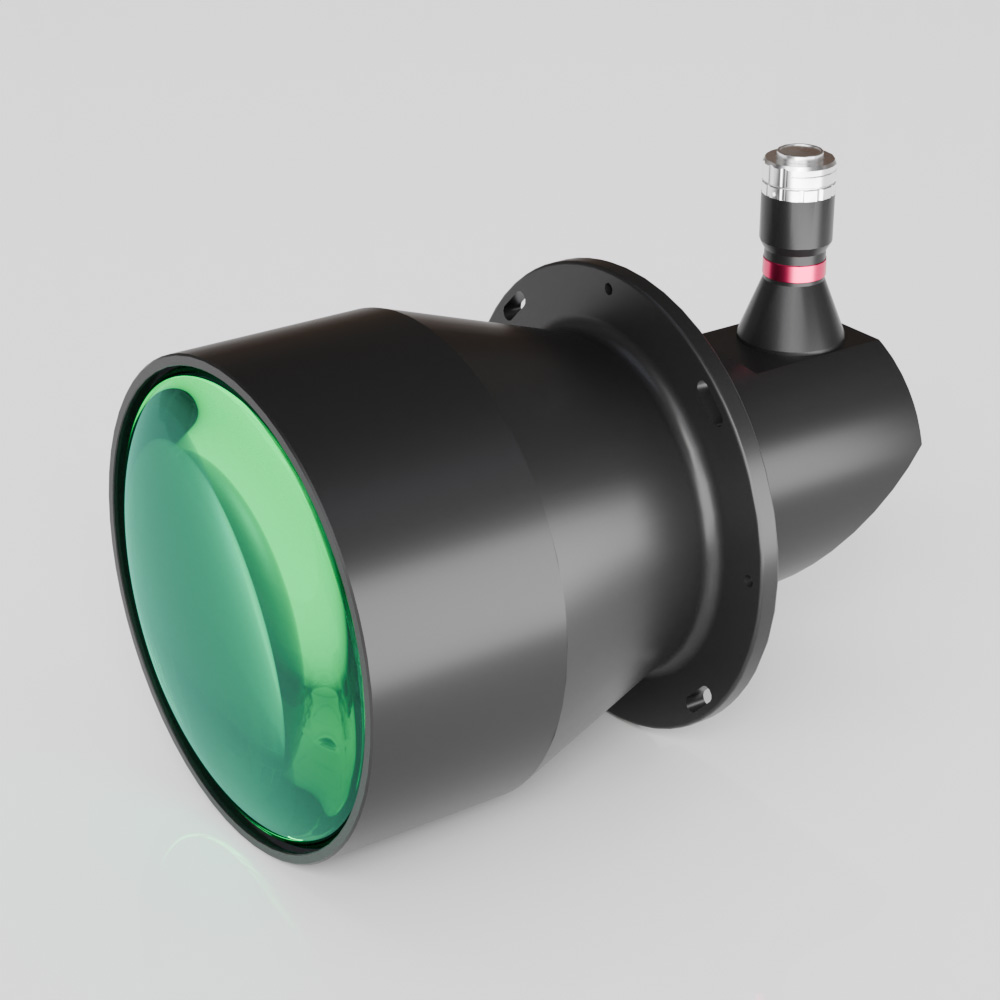

16.6(1″)mm 0.077X 90° Matrix Bi-Telecentric Lenses | DTCM110-216-T90-AL COOLENS®

Model NO.    :

DTCM110-216-T90-AL

Image Circle: 16.6(1″)mm
Magnification: 0.077X
FOV: 216mm
WD: 372±5mm
NA: 0.0059
Mount: C
Type: 90° Matrix Bi-Telecentric Lenses

Model No. DTCM110-216-T90-AL Object Field of View(Φmm) 216
Image Circle Diameter (Φmm) 16.6(1") Best Aperture(f/#) 6.5
Magnification(x) 0.077 MTF30 (lp/mm) >140
Working Distance(mm) 372±5 Depth of Field(mm) ±107.9@F16
NA 0.0059 Distortion Typical(% max) <0.1
Type 90° Matrix Bi-Telecentric Lenses Telecentricity Typical (°max) <0.1
Length of I/O(mm) 917±5
Mechanical Specifications
Mount C
Length (mm) 396.8

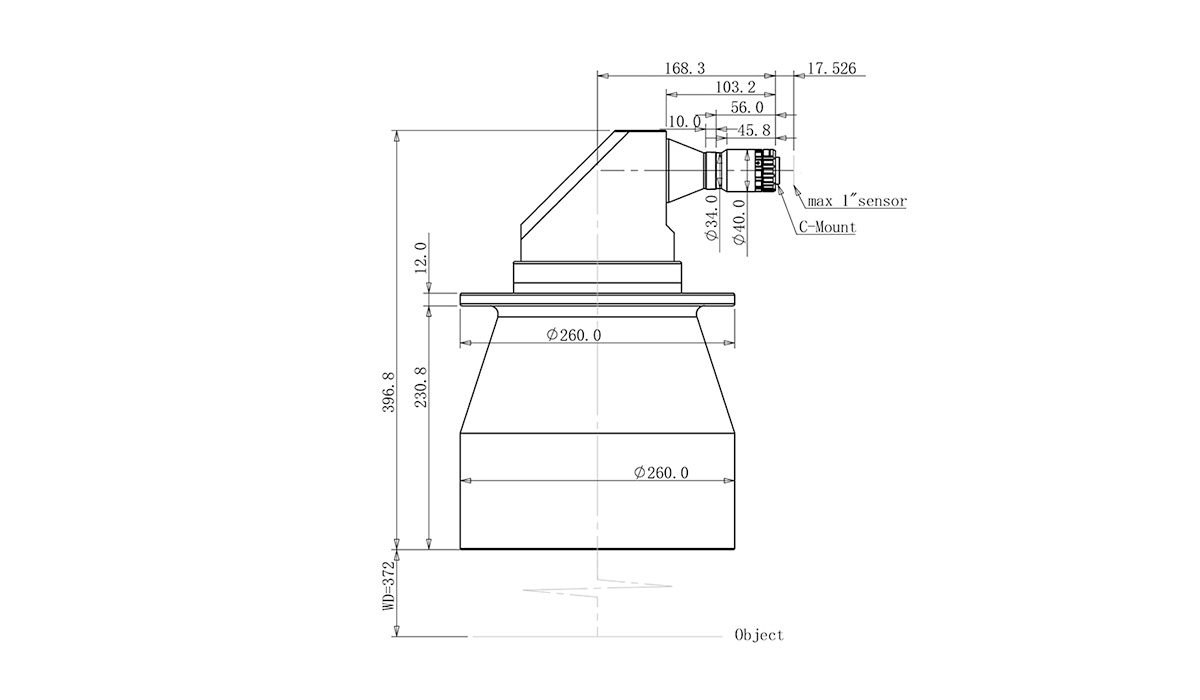

Dimensions
