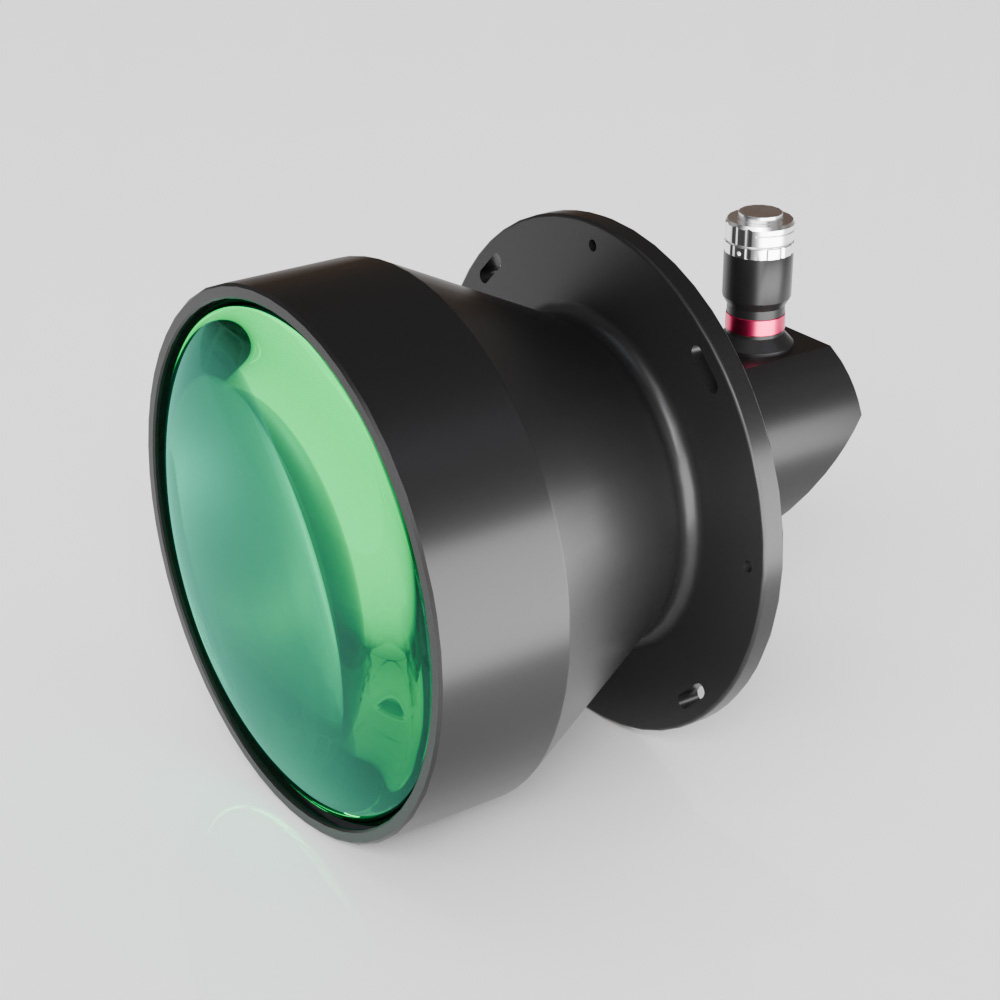

16.6(1″)mm 0.064X 90° Matrix Bi-Telecentric Lenses | DTCM110-258-T90-AL COOLENS®

Model NO.    :

DTCM110-258-T90-AL

Image Circle: 16.6(1″)mm
Magnification: 0.064X
FOV: 258mm
WD: 338±5mm
NA: 0.00494
Mount: C
Type: 90° Matrix Bi-Telecentric Lenses

Model No. DTCM110-258-T90-AL Object Field of View(Φmm) 258
Image Circle Diameter (Φmm) 16.6(1") Best Aperture(f/#) 6.5
Magnification(x) 0.064 MTF30 (lp/mm) >140
Working Distance(mm) 338±5 Depth of Field(mm) ±156.3@F16
NA 0.00494 Distortion Typical(% max) <0.1
Type 90° Matrix Bi-Telecentric Lenses Telecentricity Typical (°max) <0.1
Length of I/O(mm) 804±5
Mechanical Specifications
Mount C
Length (mm) 355.2

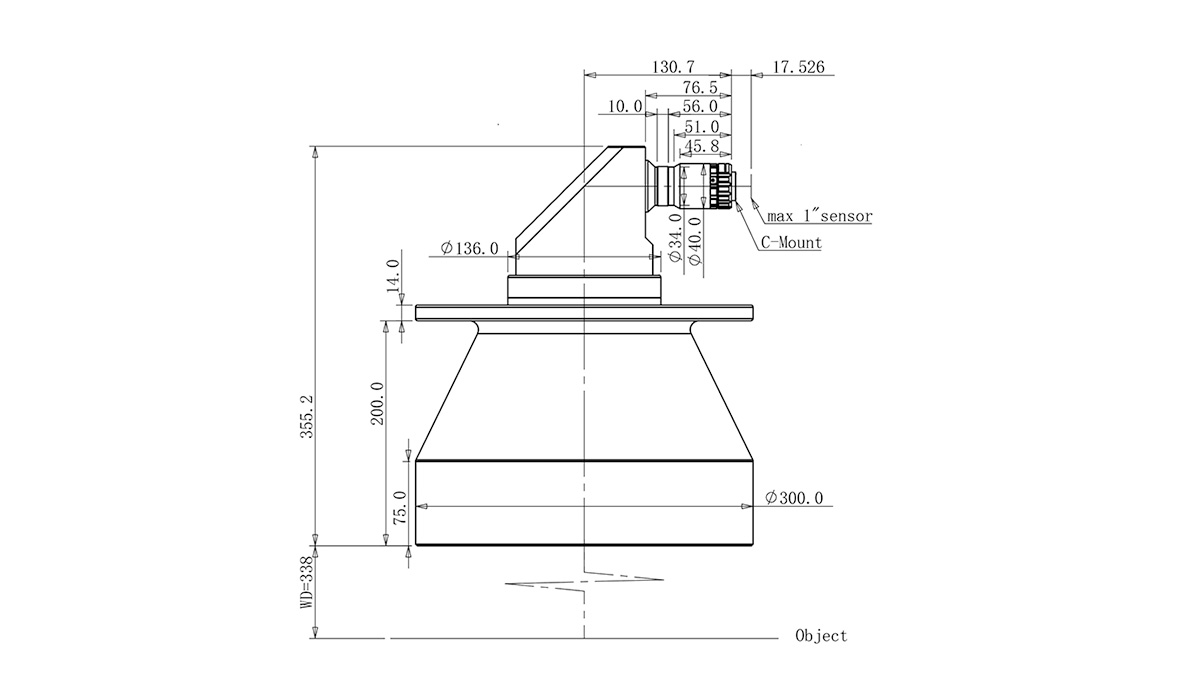

Dimensions
