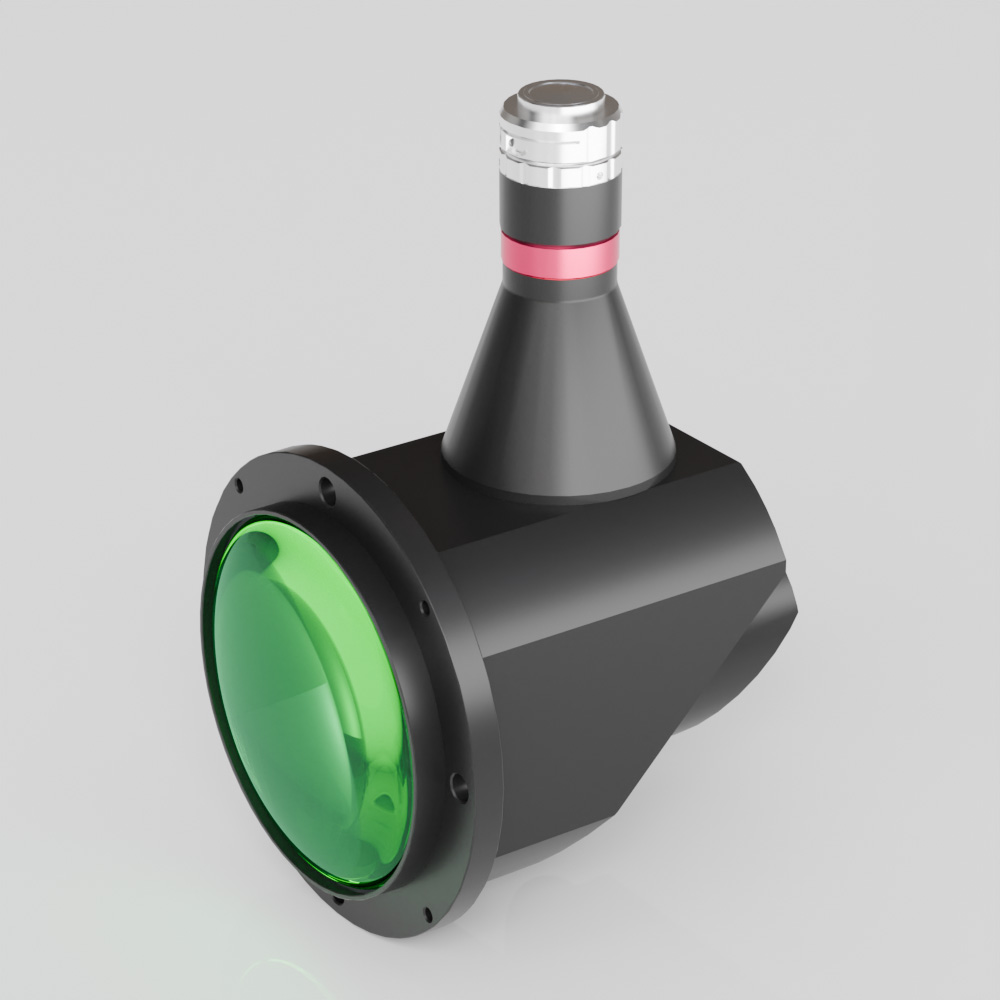

11.4(2/3″)mm 0.114X 90° Matrix Bi-Telecentric Lenses | DTCM230-100H-T90-AL COOLENS®

Model NO.    :

DTCM230-100H-T90-AL

Image Circle: 11.4(2/3″)mm
Magnification: 0.114X
FOV: 100mm
WD: 238±4mm
NA: 0.01169
Mount: C
Type: 90° Matrix Bi-Telecentric Lenses

Model No. DTCM230-100H-T90-AL Object Field of View(Φmm) 100
Image Circle Diameter (Φmm) 11.4(2/3") Best Aperture(f/#) 4.9
Magnification(x) 0.114 MTF30 (lp/mm) >185
Working Distance(mm) 238±4 Depth of Field(mm) ±33.8@F11
NA 0.01169 Distortion Typical(% max) <0.1
Type 90° Matrix Bi-Telecentric Lenses Telecentricity Typical (°max) <0.1
Length of I/O(mm) 515±4
Mechanical Specifications
Mount C
Length (mm) 243.5

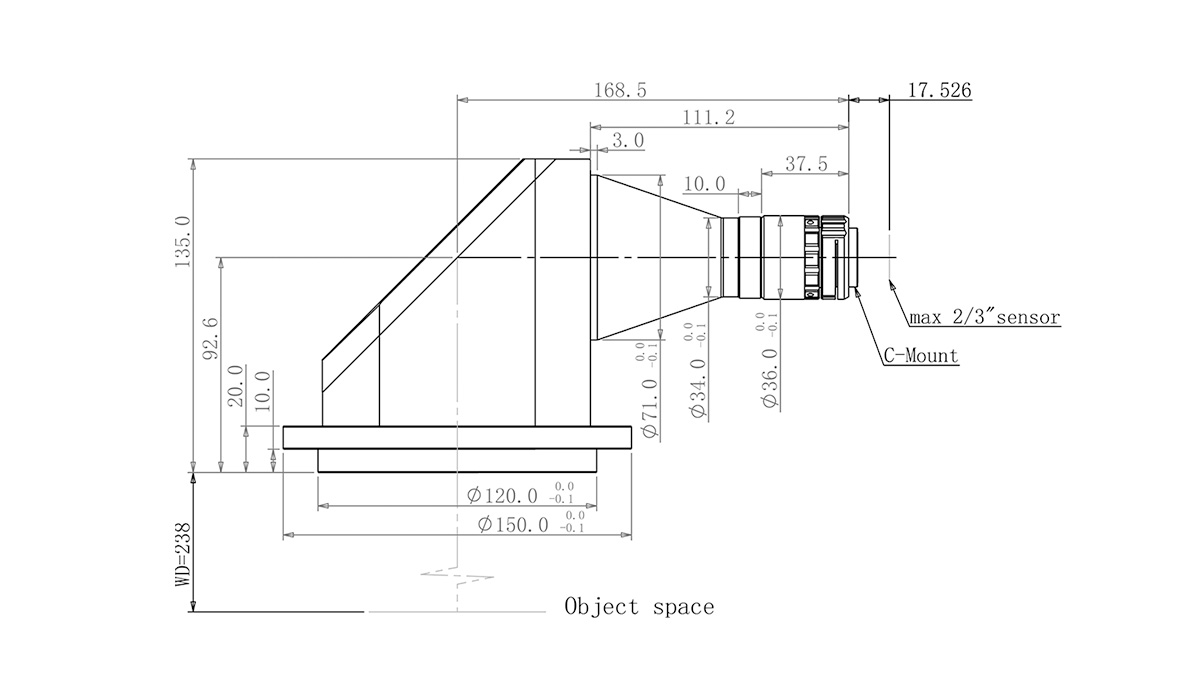

Dimensions
