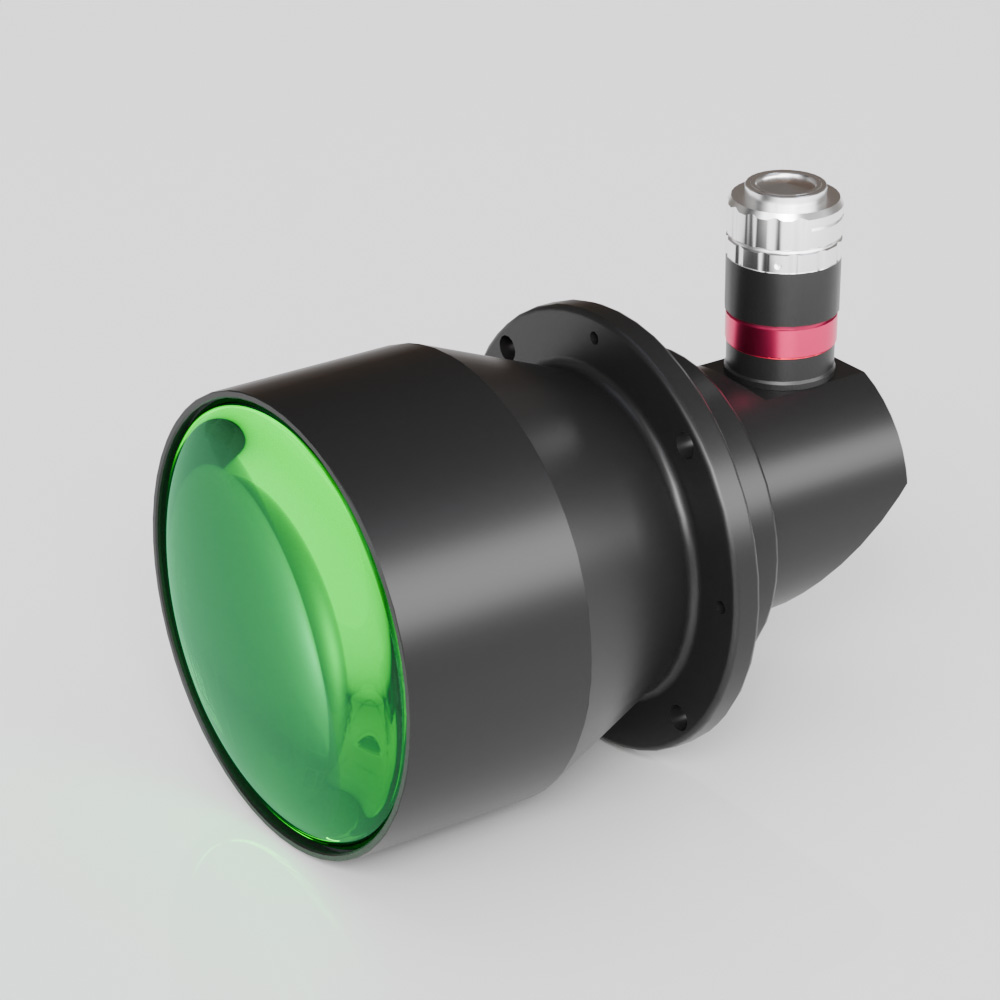

11.4(2/3″)mm 0.095X 90° Matrix Bi-Telecentric Lenses | DTCM230-120H-T90-AL COOLENS®

Model NO.    :

DTCM230-120H-T90-AL

Image Circle: 11.4(2/3″)mm
Magnification: 0.095X
FOV: 120mm
WD: 273±5mm
NA: 0.00974
Mount: C
Type: 90° Matrix Bi-Telecentric Lenses

Model No. DTCM230-120H-T90-AL Object Field of View(Φmm) 120
Image Circle Diameter (Φmm) 11.4(2/3") Best Aperture(f/#) 4.9
Magnification(x) 0.095 MTF30 (lp/mm) >185
Working Distance(mm) 273±5 Depth of Field(mm) ±48.7@F11
NA 0.00974 Distortion Typical(% max) <0.1
Type 90° Matrix Bi-Telecentric Lenses Telecentricity Typical (°max) <0.1
Length of I/O(mm) 572±5
Mechanical Specifications
Mount C
Length (mm) 208.5

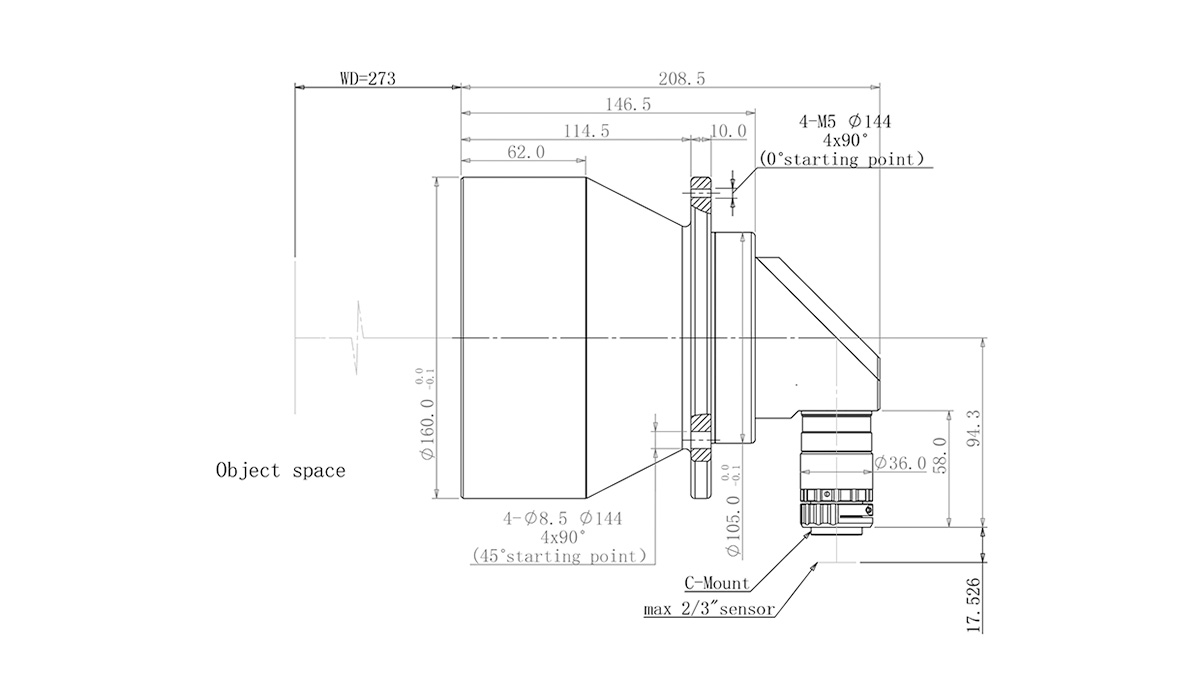

Dimensions
