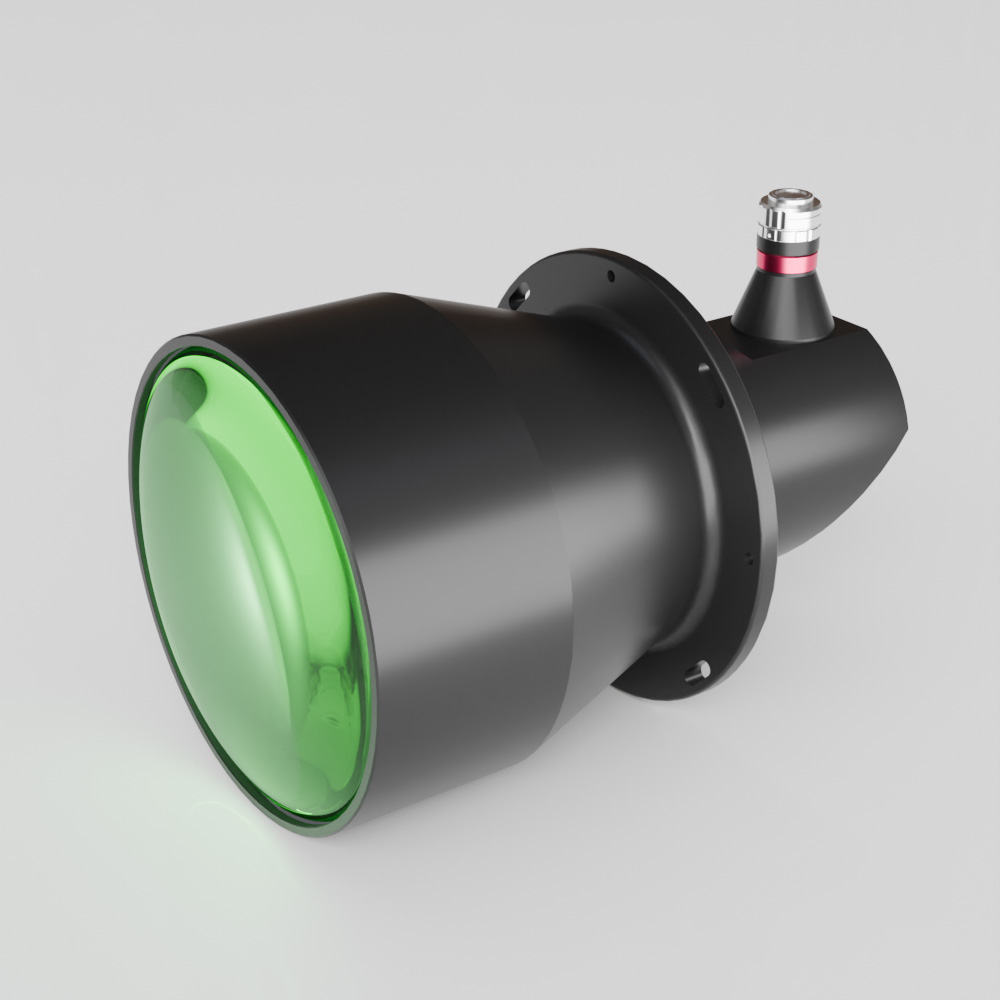

11.4(2/3″)mm 0.053X 90° Matrix Bi-Telecentric Lenses | DTCM230-216-T90-AL COOLENS®

Model NO.    :

DTCM230-216-T90-AL

Image Circle: 11.4(2/3″)mm
Magnification: 0.053X
FOV: 216mm
WD: 372±5mm
NA: 0.00541
Mount: C
Type: 90° Matrix Bi-Telecentric Lenses

Model No. DTCM230-216-T90-AL Object Field of View(Φmm) 216
Image Circle Diameter (Φmm) 11.4(2/3") Best Aperture(f/#) 4.9
Magnification(x) 0.053 MTF30 (lp/mm) >180
Working Distance(mm) 372±5 Depth of Field(mm) ±157@F11
NA 0.00541 Distortion Typical(% max) <0.1
Type 90° Matrix Bi-Telecentric Lenses Telecentricity Typical (°max) <0.1
Length of I/O(mm) 898±5
Mechanical Specifications
Mount C
Length (mm) 396.8

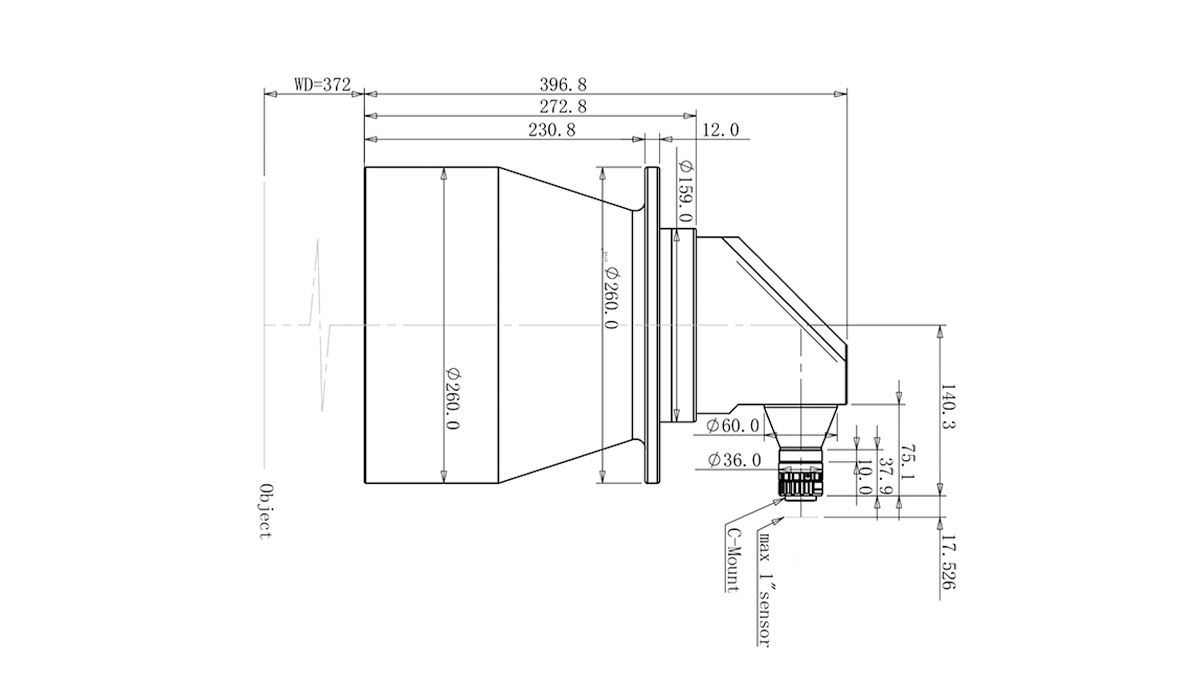

Dimensions
