In our first sneak peek, VICO Imaging highlighted machine vision solutions for semiconductor applications. We showcased our COOLENS® WH, WWH, and WWK series for die inspection, demonstrating their C-mount long WD. Besides, our TUH lens is featured in wafer inspection, showing their ability to capture subtle defects. Our first sneak peek offered a glimpse into our commitment to cutting-edge machine vision technology.
For our second sneak peek at Japan ITE2024, we will present our solutions featuring COOLENS® DTCA35F for high-precision mask inspection. In addition, the TUL series microscope tube lens will be highlighted, catering to applications across different industries, such as semiconductors and electronics.
Read related post> Sneak Peek 1: Showcasing Our Innovative Machine Vision Solutions for Semiconductor Applications in Japan ITE2024

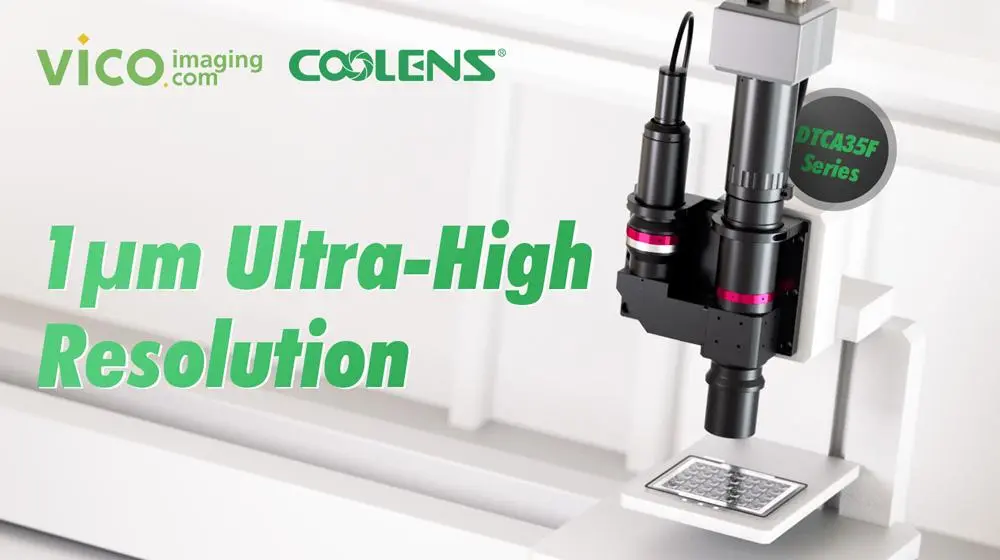

Part One – COOLENS® DTCA35F Series for High-Precision Mask Inspection
Issues
Long testing time, challenging image stitching, limited workspace.
Highlights
Bi-telecentric lenses feature a large image circle, ultra-low distortion, high resolution, and apochromatic design. It supports up to 250MP, 1.5µm sensor.
- Larger FOV than a microscope
- Long WD up to 102mm
- A wide range of magnification options of 1x-5x
Solution
Configurations:
- Inspected object: Mask
- Camera: 65MP 3.5μm

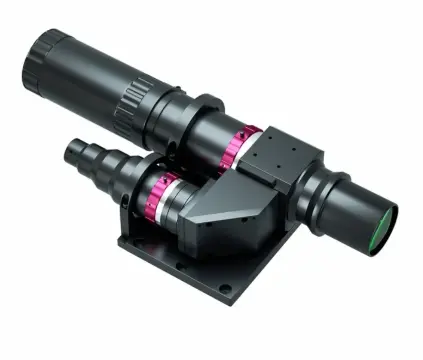

- Lens: DTCA35F-8.8C-G-M58-AL
- Illumination: Built-in coaxial light
Results
- Inspection accuracy: 1μm
- WD: 60mm
- FOV: several times larger than that of same-magnification microscopes.
Read related post> 1μm Ultra High Resolution AOI Lens for Wafer Inspection

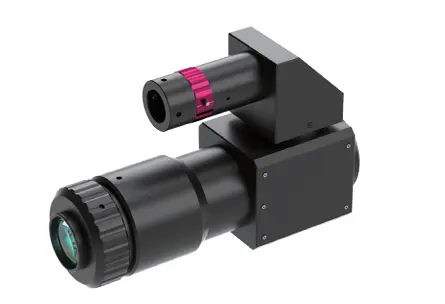

Part Two – COOLENS® TUL Series Industrial Microscope Tube Lenses
Highlights
- Supports sensors up to Full Frame.
- Magnification options of 0.36x-1.8x catering to various inspection precision needs.
- Modular design, supporting built-in coaxial illumination.
- Compatible with M58, M42, and C mount.
Solution
Configurations:
- Lens: 10x infinite APO objective
- Tube lens: 1.8x
- Camera: 65MP 3.5μm
- Illumination: built-in coaxial light
Results
Coupled with a 50x infinite APO objective,
our TUL tube lens helps to capture 0.4μm pinholes.
Applications

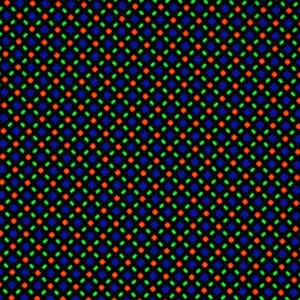

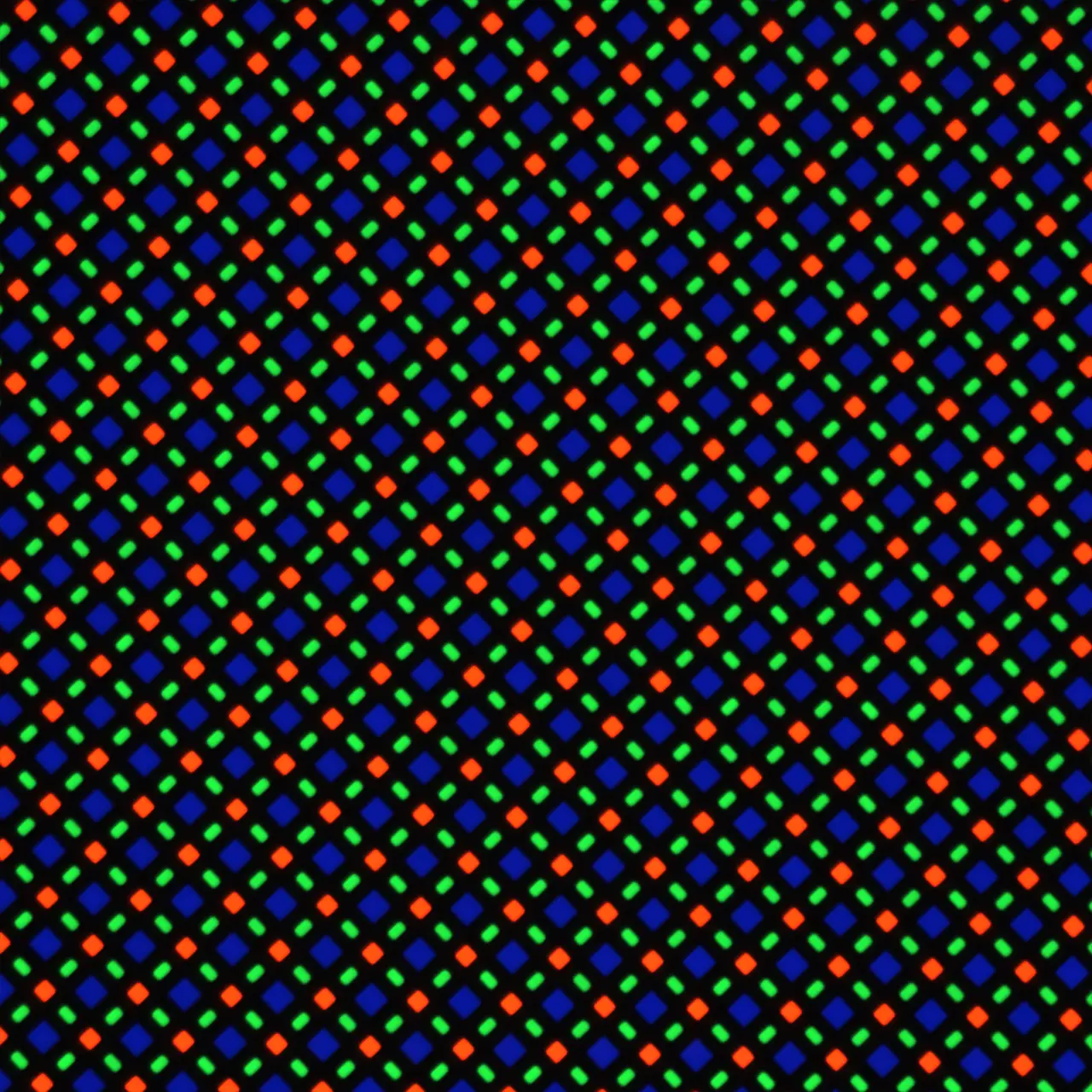

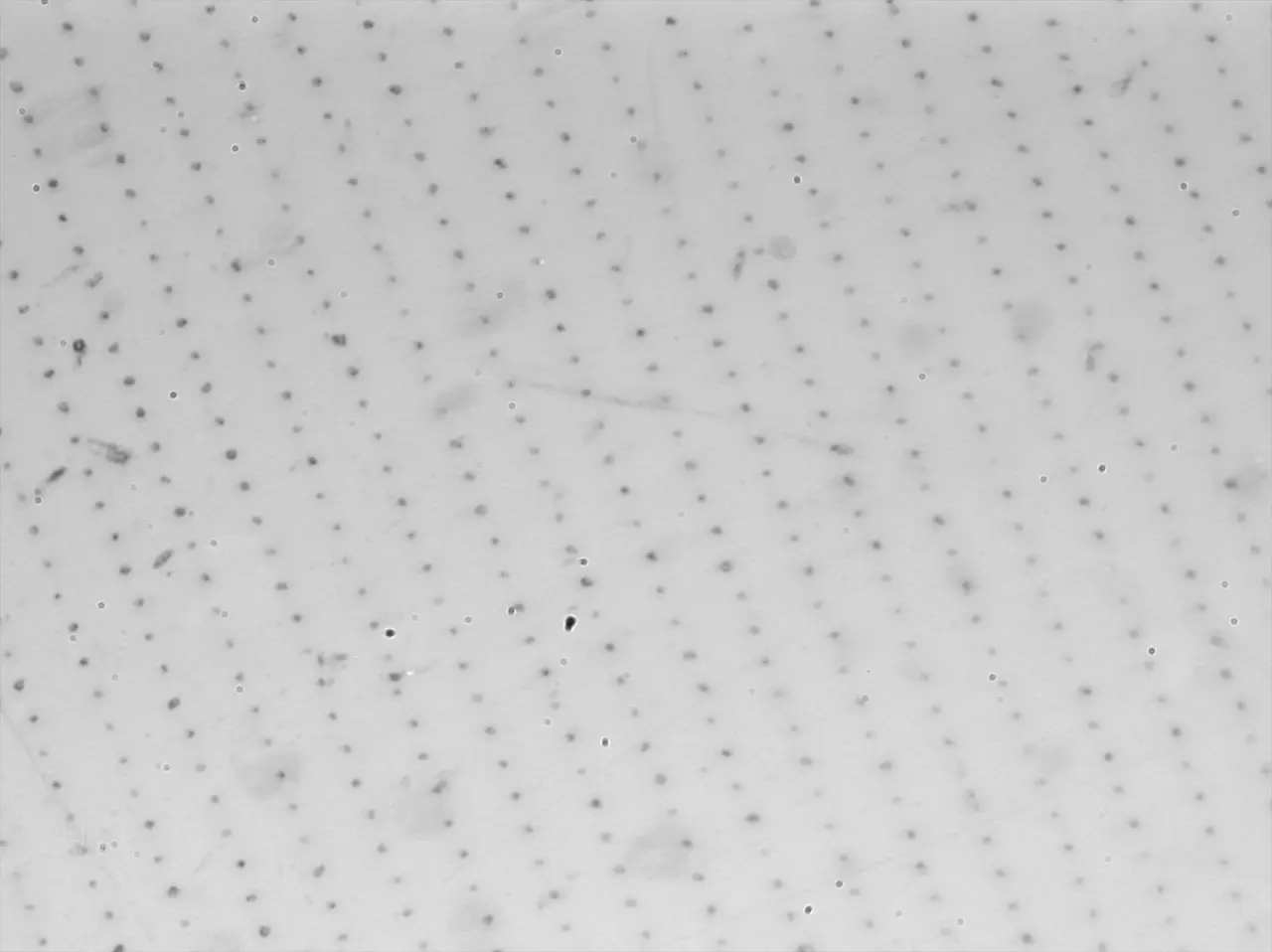

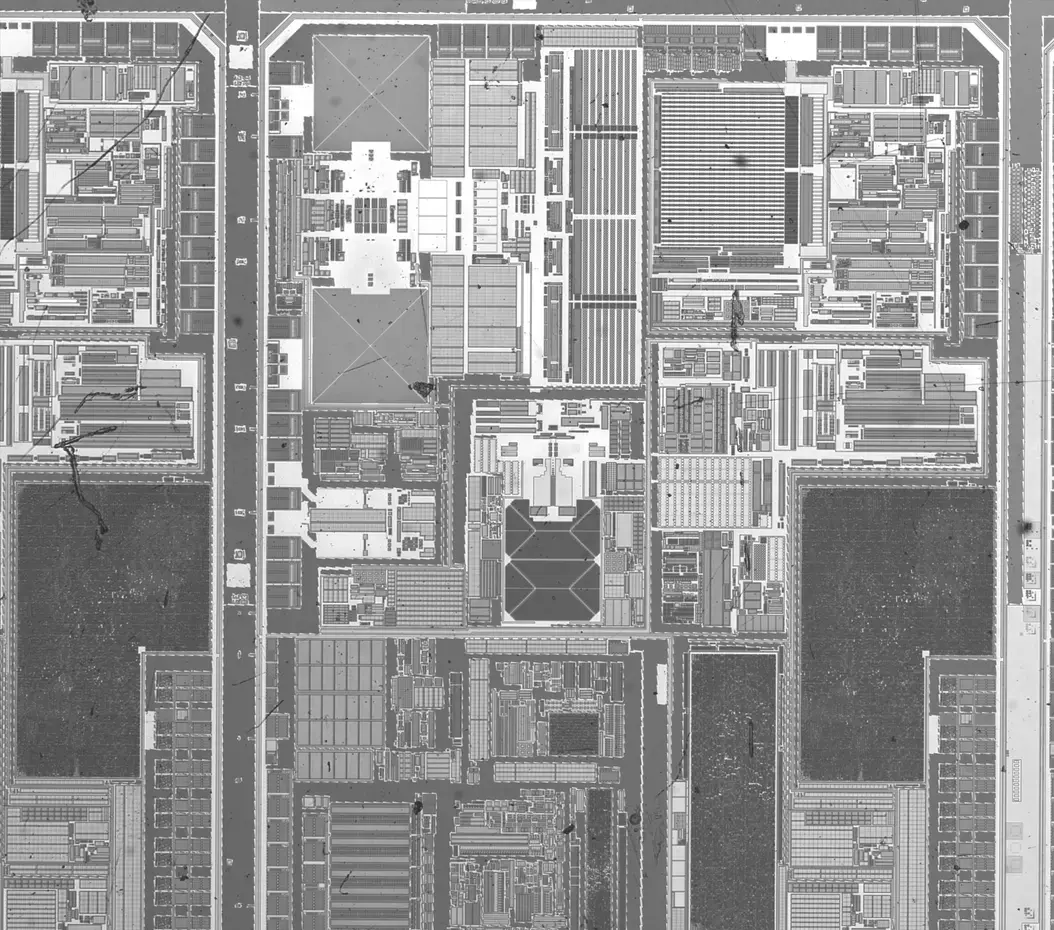

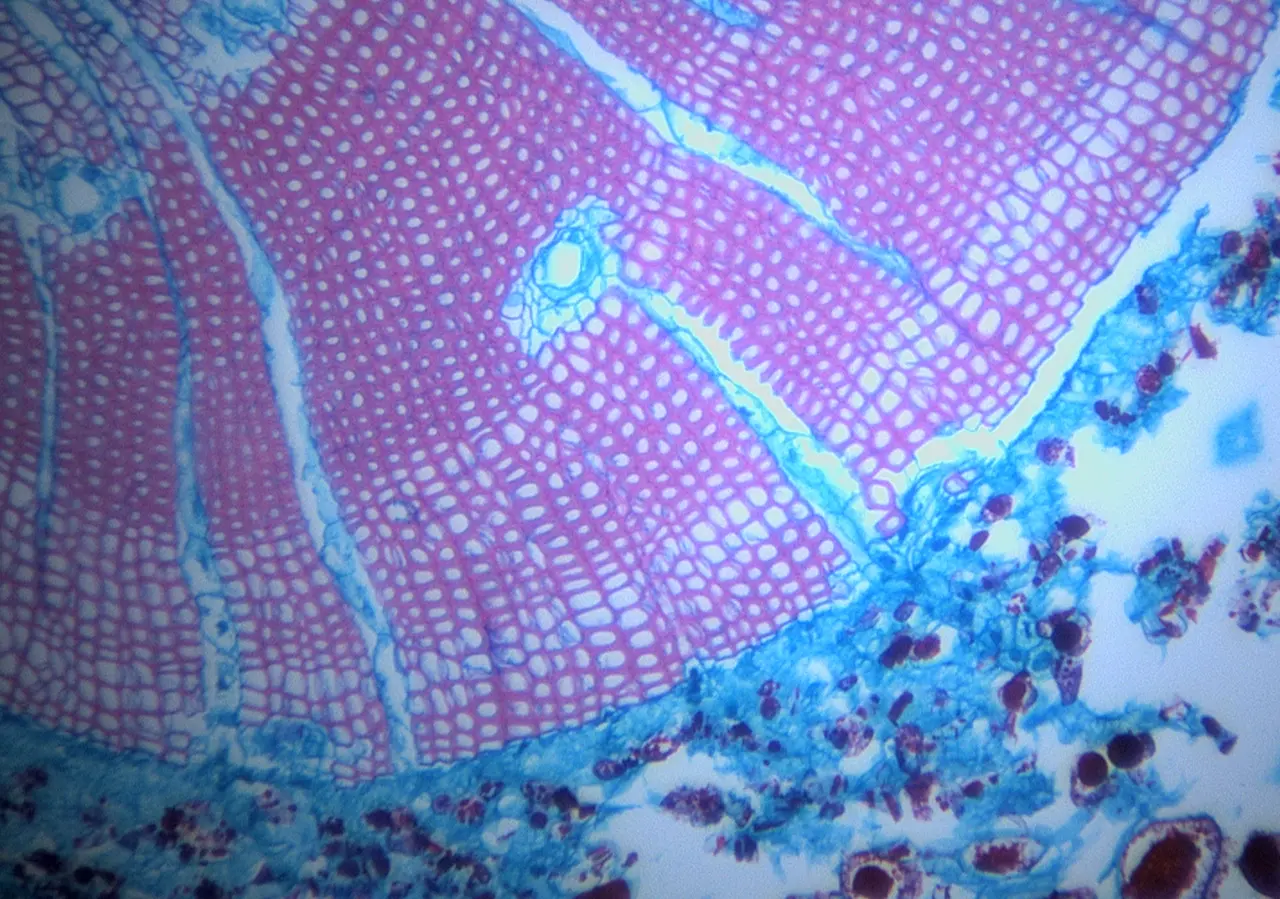

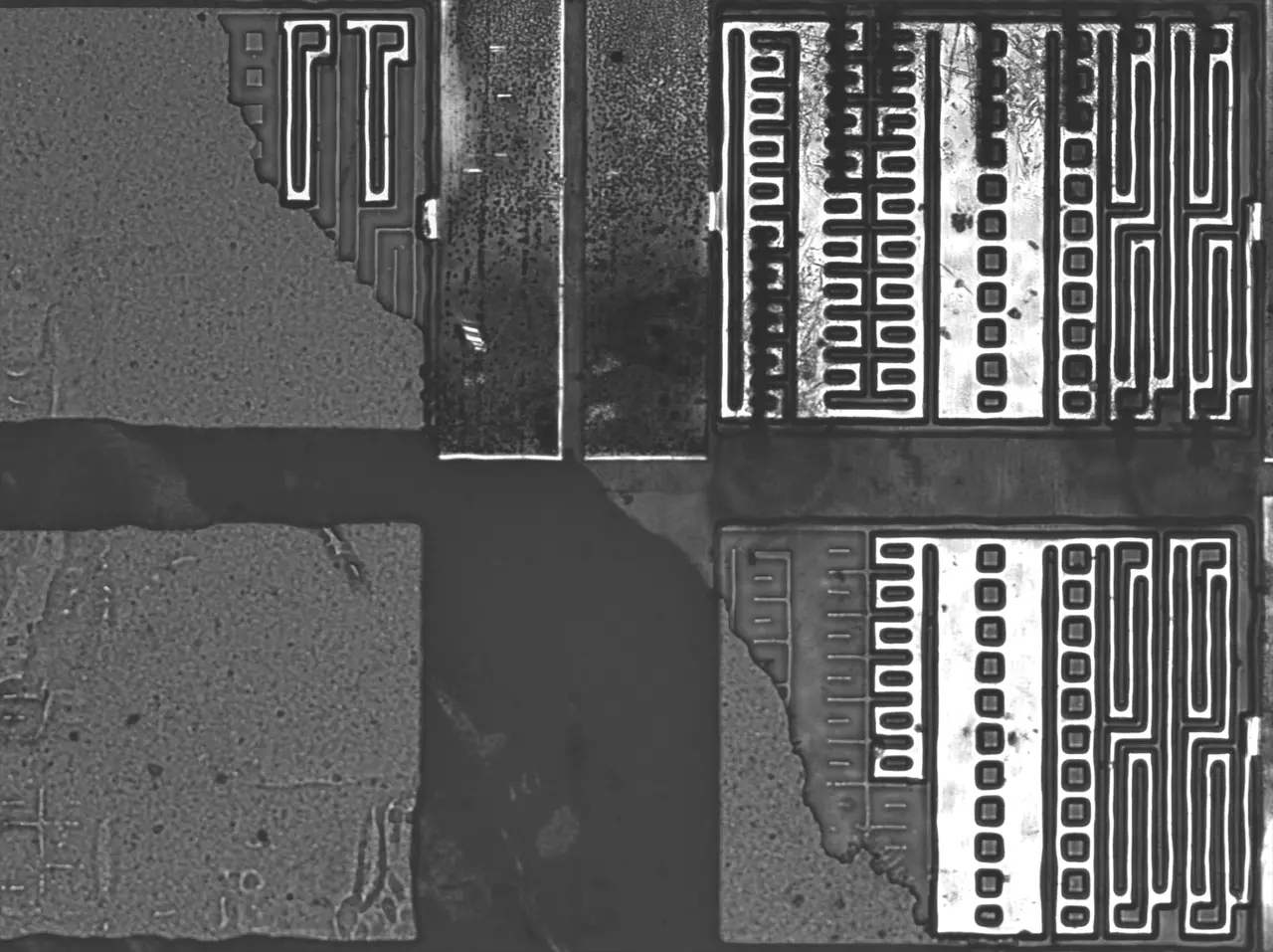

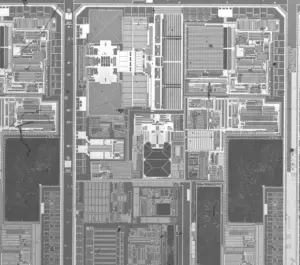

Below are images shot by our TUL tube lens coupled with a 10x APO objective.
Conclusion
As we wrap up our sneak peek into what VICO Imaging has planned for Japan ITE2024, it’s clear that we’re not just participating in the event; we’re excited to be one of its highlights. Our cutting-edge products lead the way in machine vision, promising a bright and innovative future. If you’re heading to Yokohama, we’d love for you to visit our booth (No.2) and see the future of imaging technology up close. For a deeper dive, don’t hesitate to contact our sales engineers (sales@vicoimaging.com). We can’t wait to share our vision with you!
Click here to download our Featured Brochure to discover our cool lenses and what they can do! Find out more about our top products and popular applications, including the ones showcased at the Japan ITE2024. Don’t miss the chance to discover our imaging solutions tailored just for you!
