VICO

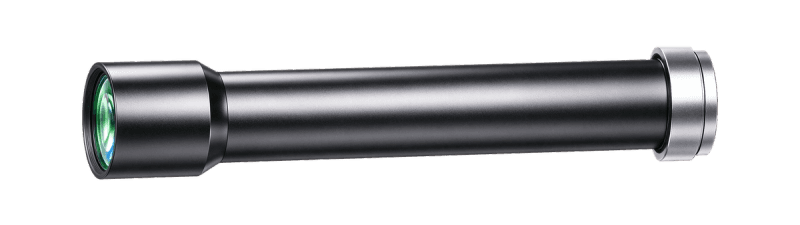

WWH 5-Megapixel Telecentric Lenses
WWH40-150AT
WWH40-150AT
WWH40-150AT industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 4.0 |
|---|---|
| Working Distance(mm) | 150 |
| Max Sensor Size | 11.0(2/3") |
| F-Number | 34 |
| Telecentricity(°) | 0.03 |
| Distortion(%) | 0.4 |
| MTF30 (Image-side)(lp/mm) | 25 |
| Depth of Field(mm) | 0.17 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 152.7 |
| NA | 0.05569 |
|---|---|
| Filter Thread | M25 P0.5 |
| Coaxial Light Support | No |
| Iris | No |
