WWH 5-Megapixel Telecentric Lenses
WWH40-108ATV3
WWH40-108ATV3

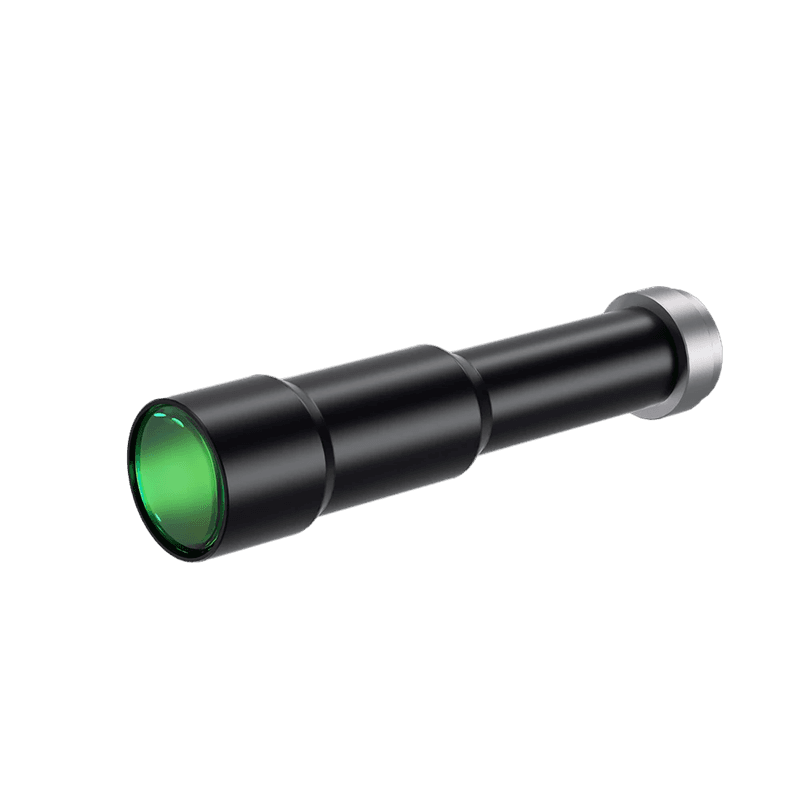

WWH40-108ATV3 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 4.0 |
|---|---|
| Working Distance(mm) | 108±2 |
| Max Sensor Size | 11.0(2/3") |
| F-Number | 19.4 |
| Telecentricity(°) | <0.9 |
| Distortion(%) | <0.1 |
| Depth of Field(mm) | 0.1 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 133.2 |
| NA | 0.1 |
|---|---|
| Filter Thread | M30x0.5 |
| Coaxial Light Support | No |
| Iris | No |
