VICO
WWH 5-Megapixel Telecentric Lenses

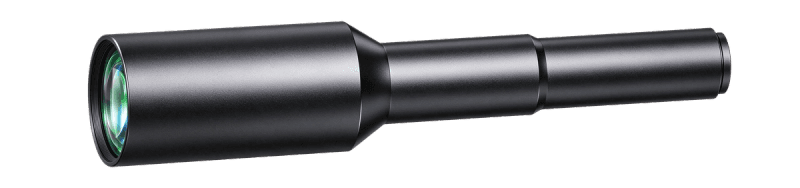

WWH25-300CT-230V2
WWH25-300CT-230V2
WWH25-300CT-230V2 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 2.5 |
|---|---|
| Working Distance(mm) | 300 |
| Max Sensor Size | 11.0(2/3") |
| F-Number | 18.3 |
| Telecentricity(°) | 0.03 |
| Distortion(%) | 0.03 |
| MTF30 (Image-side)(lp/mm) | 42.7 |
| Depth of Field(mm) | 0.2 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 291.8 |
| Object Field of View(Φmm) | 4.4 |
|---|---|
| NA | 0.068 |
| Length of I/O(mm) | 619.1 |
| Filter Thread | M25 P0.5 |
| Coaxial Light Support | Yes |
| Iris | No |
