WWH 5-Megapixel Telecentric Lenses
WWH20-65ATV4
WWH20-65ATV4

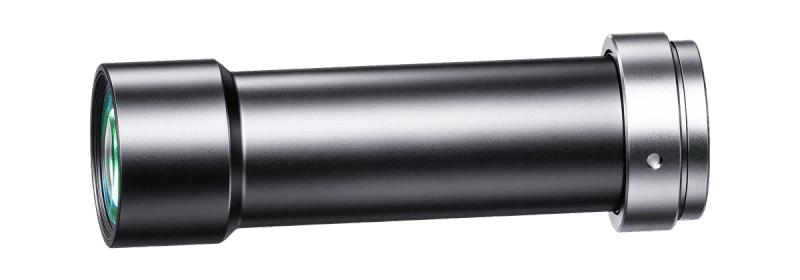

WWH20-65ATV4 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 2.0 |
|---|---|
| Working Distance(mm) | 65±1 |
| Max Sensor Size | 11(2/3") |
| F-Number | 13.3 |
| Telecentricity(°) | 0.04 |
| Distortion(%) | 0.1 |
| MTF30 (Image-side)(lp/mm) | 60 |
| Object Resolution(μm) | 4.5 |
| Depth of Field(mm) | 0.3 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 80 |
| NA | 0.074 |
|---|---|
| Coaxial Light Support | No |
| Iris | No |
