WWH 5-Megapixel Telecentric Lenses

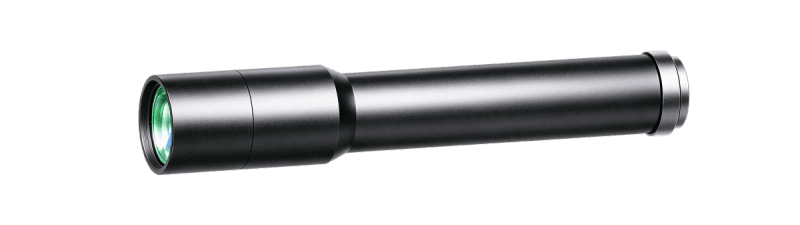

WWH20-150AT-110
WWH20-150AT-110
WWH20-150AT-110 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 2.00 |
|---|---|
| Working Distance(mm) | 150 |
| Max Sensor Size | 16.0(1") |
| F-Number | 16 |
| Telecentricity(°) | <0.1 |
| Distortion(%) | <0.1 |
| MTF30 (Image-side)(lp/mm) | 57 |
| Object Resolution(μm) | 5.4 |
| Depth of Field(mm) | 0.30 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 191.5 |
| NA | 0.06246 |
|---|---|
| Coaxial Light Support | No |
| Iris | No |
