WWH 5-Megapixel Telecentric Lenses

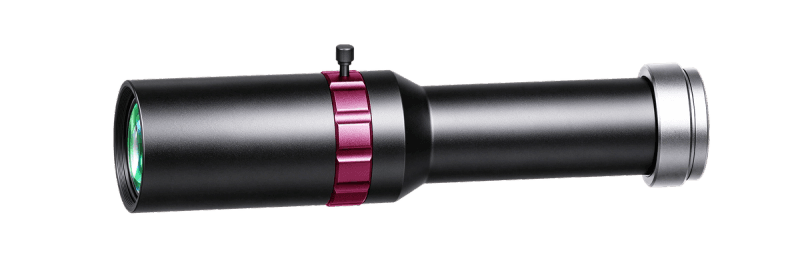

WWH20-110ATV4-G
WWH20-110ATV4-G
WWH20-110ATV4-G industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 2.00 |
|---|---|
| Working Distance(mm) | 110±2 |
| Max Sensor Size | 11.0(2/3") |
| F-Number | 11.6-32 |
| Telecentricity(°) | 0.05 |
| Distortion(%) | 0.04 |
| MTF30 (Image-side)(lp/mm) | 75.7-30.5 |
| Depth of Field(mm) | 0.2-0.6 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 128.7 |
| Object Field of View(Φmm) | 5.5 |
|---|---|
| NA | 0.0854-0.031 |
| Length of I/O(mm) | 256.2 |
| Filter Thread | M27 P0.5 |
| Coaxial Light Support | No |
| Iris | Yes |
