WWH 5-Megapixel Telecentric Lenses
WWH15-65AT
WWH15-65AT

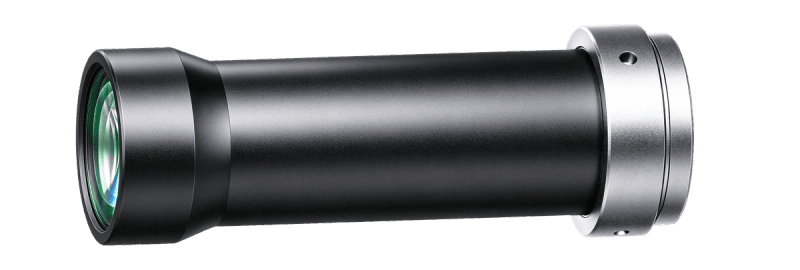

WWH15-65AT industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 1.50 |
|---|---|
| Working Distance(mm) | 65 |
| Max Sensor Size | 11.0(2/3") |
| F-Number | 12.5 |
| Telecentricity(°) | <0.1 |
| Distortion(%) | <0.1 |
| MTF30 (Image-side)(lp/mm) | 65 |
| Depth of Field(mm) | 0.44 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 74.4 |
| NA | 0.06 |
|---|---|
| Filter Thread | M23 P0.5 |
| Coaxial Light Support | No |
| Iris | No |
