WWH 5-Megapixel Telecentric Lenses

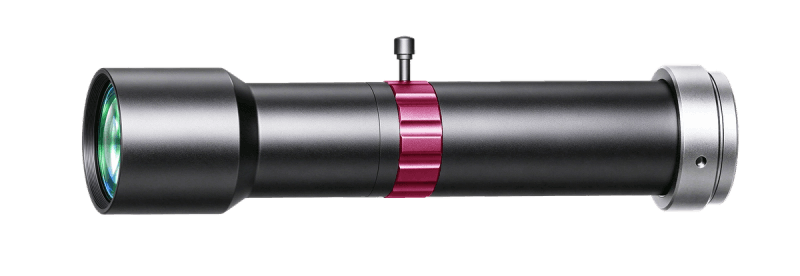

WWH15-110ATV4-G
WWH15-110ATV4-G
WWH15-110ATV4-G industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 1.50 |
|---|---|
| Working Distance(mm) | 110±2 |
| Max Sensor Size | 11.0(2/3") |
| F-Number | 11.4-32 |
| Telecentricity(°) | 0.1 |
| Distortion(%) | 0.05 |
| MTF30 (Image-side)(lp/mm) | 80.1-30.9 |
| Object Resolution(μm) | 5.5-15.3 |
| Depth of Field(mm) | 0.4-1.1 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 120.6 |
| NA | 0.0652-0.0235 |
|---|---|
| Coaxial Light Support | No |
| Iris | Yes |
