WWH 5-Megapixel Telecentric Lenses

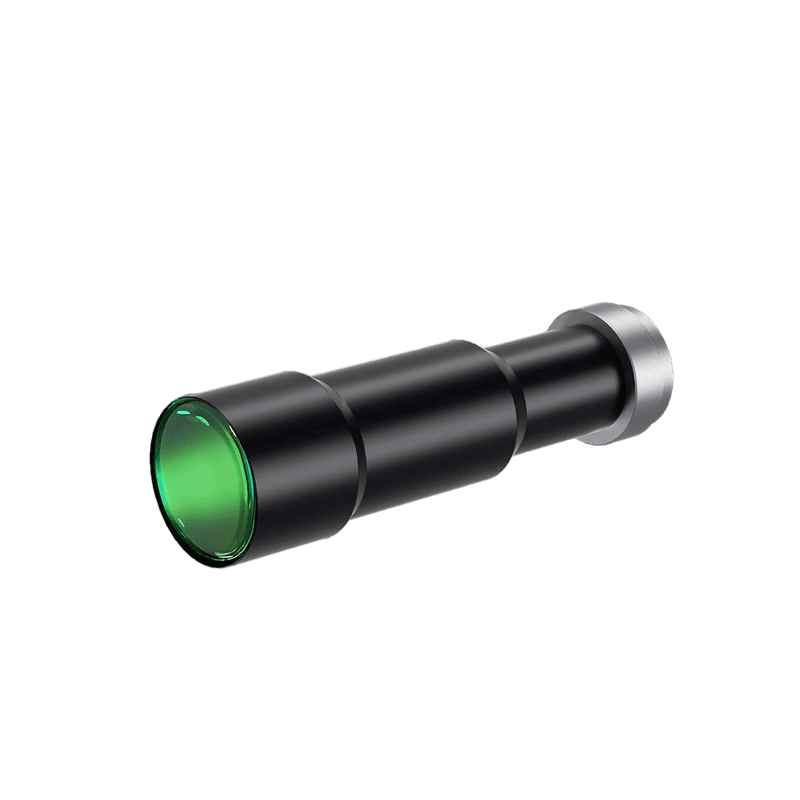

WWH15-108ATV3
WWH15-108ATV3
WWH15-108ATV3 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 1.5 |
|---|---|
| Working Distance(mm) | 108±2 |
| Max Sensor Size | 11.0(2/3") |
| F-Number | 8.8 |
| Telecentricity(°) | 0.02 |
| Distortion(%) | 0.04 |
| MTF30 (Image-side)(lp/mm) | 100 |
| Depth of Field(mm) | 0.3 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 122.4 |
| NA | 0.08538 |
|---|---|
| Filter Thread | M30x0.5 |
| Coaxial Light Support | No |
| Iris | No |
