WWH 5-Megapixel Telecentric Lenses
WWH12-108ATV3
WWH12-108ATV3

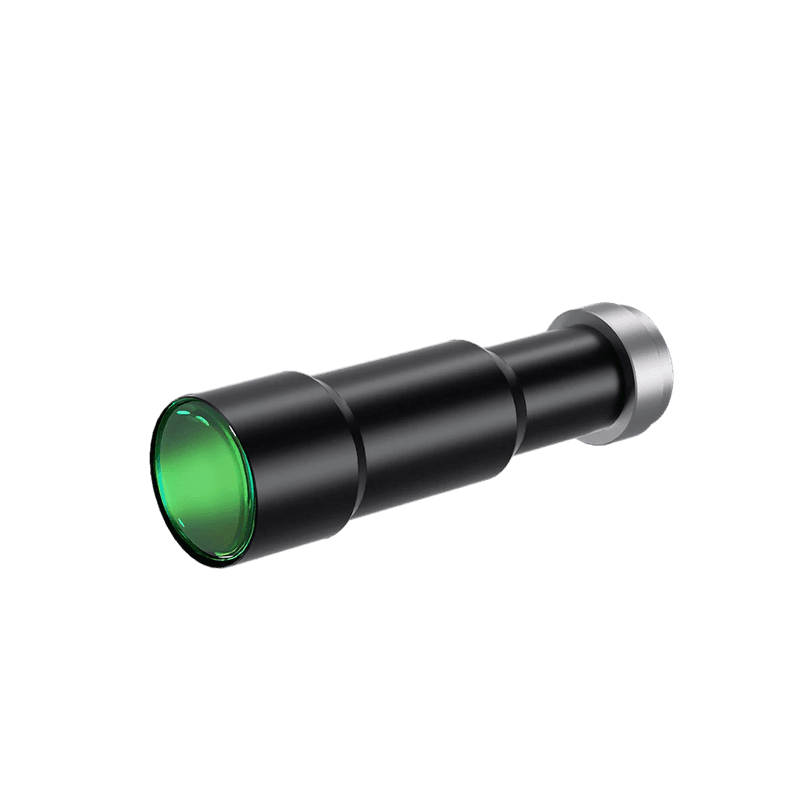

WWH12-108ATV3 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 1.2 |
|---|---|
| Working Distance(mm) | 108±2 |
| Max Sensor Size | 11.0(2/3") |
| F-Number | 9.2 |
| Telecentricity(°) | 0.05 |
| Distortion(%) | 0.05 |
| MTF30 (Image-side)(lp/mm) | 94 |
| Depth of Field(mm) | 0.4 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 114.2 |
| NA | 0.07986 |
|---|---|
| Coaxial Light Support | No |
| Iris | No |
