WWH 5-Megapixel Telecentric Lenses

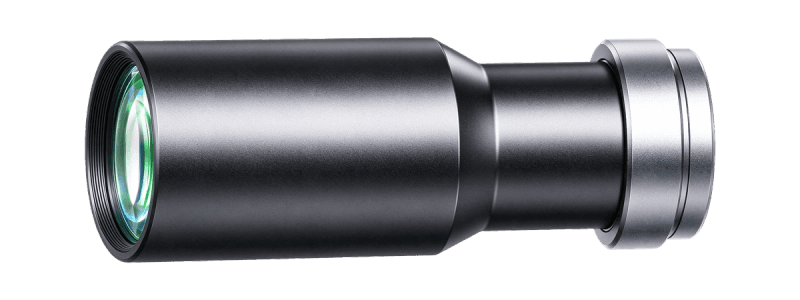

WWH10-65ATV4
WWH10-65ATV4
WWH10-65ATV4 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 1.00 |
|---|---|
| Working Distance(mm) | 65 |
| Max Sensor Size | 11.0(2/3") |
| F-Number | 9.1 |
| Telecentricity(°) | 0.01 |
| Distortion(%) | 0.045 |
| MTF30 (Image-side)(lp/mm) | 96.4 |
| Depth of Field(mm) | 0.726 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 80 |
| Object Field of View(Φmm) | 11 |
|---|---|
| NA | 0.055 |
| Filter Thread | M25 P0.5 |
| Coaxial Light Support | No |
| Iris | No |
