WWH 5-Megapixel Telecentric Lenses
WWH10-370-230
WWH10-370-230

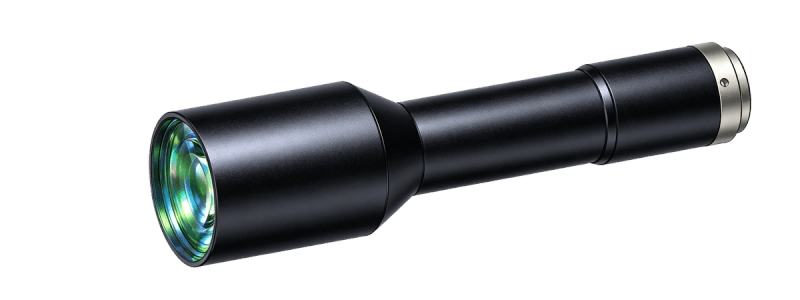

WWH10-370-230 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 1.0 |
|---|---|
| Working Distance(mm) | 370 |
| Max Sensor Size | 11(2/3") |
| F-Number | 12 |
| Telecentricity(°) | 0.26 |
| Distortion(%) | 0.04 |
| MTF30 (Image-side)(lp/mm) | 80 |
| Object Resolution(μm) | 8.1 |
| Depth of Field(mm) | 1.0 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 173.9 |
| NA | 0.0417 |
|---|---|
| Filter Thread | M43x0.5 |
| Coaxial Light Support | No |
| Iris | No |
