VICO
WWH 5-Megapixel Telecentric Lenses

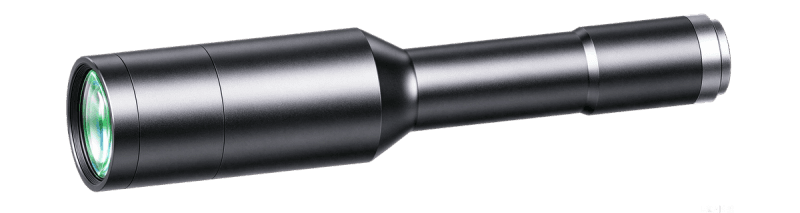

WWH10-258AT-230V2
WWH10-258AT-230V2
WWH10-258AT-230V2 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 1 |
|---|---|
| Working Distance(mm) | 258 |
| Max Sensor Size | 11(2/3") |
| F-Number | 11 |
| Telecentricity(°) | 0.06 |
| Distortion(%) | 0.01 |
| MTF30 (Image-side)(lp/mm) | 90 |
| Depth of Field(mm) | 0.9 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 221.5 |
| NA | 0.04541 |
|---|---|
| Filter Thread | M43x0.5 |
| Coaxial Light Support | No |
| Iris | No |
