WWH 5-Megapixel Telecentric Lenses
WWH10-108CTV3
WWH10-108CTV3

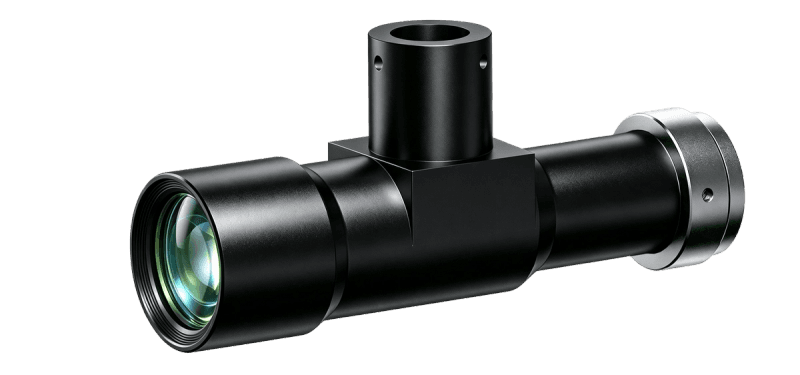

WWH10-108CTV3 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 1.0 |
|---|---|
| Working Distance(mm) | 108±2 |
| Max Sensor Size | 11.0(2/3") |
| F-Number | 7 |
| Telecentricity(°) | 0.04 |
| Distortion(%) | 0.1 |
| MTF30 (Image-side)(lp/mm) | 114 |
| Depth of Field(mm) | 0.6 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 107.9 |
| NA | 0.07118 |
|---|---|
| Filter Thread | M30x0.5 |
| Coaxial Light Support | Yes |
| Iris | No |
