WWH 5-Megapixel Telecentric Lenses
WWH08-108ATV3
WWH08-108ATV3

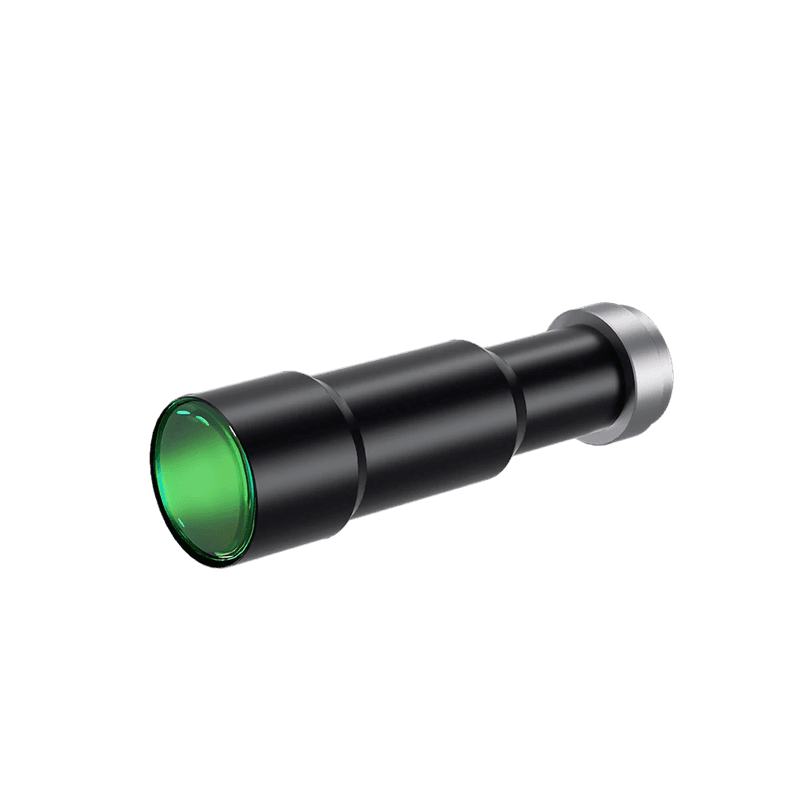

WWH08-108ATV3 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.8 |
|---|---|
| Working Distance(mm) | 108 |
| Max Sensor Size | 11.0(2/3") |
| F-Number | 7 |
| Telecentricity(°) | 0.15 |
| Distortion(%) | 0.1 |
| MTF30 (Image-side)(lp/mm) | 110 |
| Depth of Field(mm) | 0.9 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 107.6 |
| Object Field of View(Φmm) | 13.75 |
|---|---|
| NA | 0.05686 |
| Filter Thread | M30x0.5 |
| Coaxial Light Support | No |
| Iris | No |
