WWH 5-Megapixel Telecentric Lenses
WWH075-65AT
WWH075-65AT

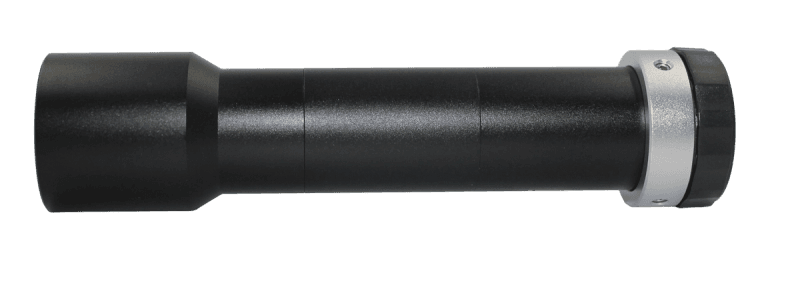

WWH075-65AT industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.75 |
|---|---|
| Working Distance(mm) | 65 |
| Max Sensor Size | 11.0(2/3") |
| F-Number | 10.6 |
| Telecentricity(°) | 0.006 |
| Distortion(%) | 0.15 |
| MTF30 (Image-side)(lp/mm) | 75 |
| Depth of Field(mm) | 1.51 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 93.2 |
| NA | 0.03539 |
|---|---|
| Filter Thread | M23 P0.5 |
| Coaxial Light Support | No |
| Iris | No |
