VICO
WWH 5-Megapixel Telecentric Lenses

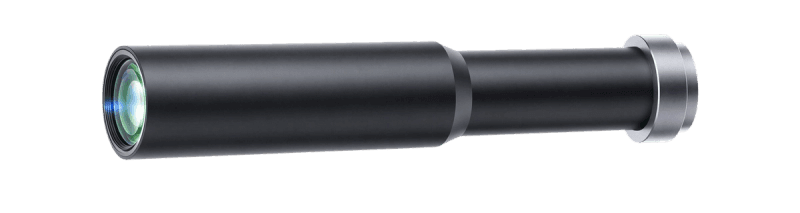

WWH05-510AT-230
WWH05-510AT-230
WWH05-510AT-230 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.5 |
|---|---|
| Working Distance(mm) | 510 |
| Max Sensor Size | 11.0(2/3") |
| F-Number | 14.2 |
| Telecentricity(°) | Non-telecentric |
| Distortion(%) | 0.5 |
| MTF30 (Image-side)(lp/mm) | 50 |
| Depth of Field(mm) | 4.50 |
Mechanical Specifications
| Camera Mount | C |
|---|
| NA | 0.01745 |
|---|---|
| Filter Thread | M25 P0.5 |
| Coaxial Light Support | No |
| Iris | No |
