VICO

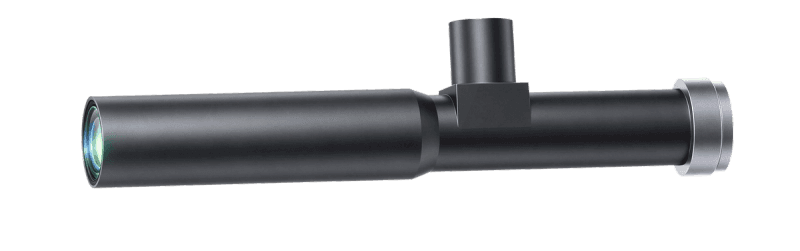

WWH 5-Megapixel Telecentric Lenses
WWH05-260CT
WWH05-260CT
WWH05-260CT industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.50 |
|---|---|
| Working Distance(mm) | 260 |
| Max Sensor Size | 7.2(1/2.5") |
| F-Number | 16.4 |
| Telecentricity(°) | <0.1 |
| Distortion(%) | 0.1 |
| MTF30 (Image-side)(lp/mm) | 55 |
| Depth of Field(mm) | 5.25 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 181.8 |
| NA | 0.01523 |
|---|---|
| Filter Thread | M25 P0.5 |
| Coaxial Light Support | Yes |
| Iris | No |
