WWH 5-Megapixel Telecentric Lenses

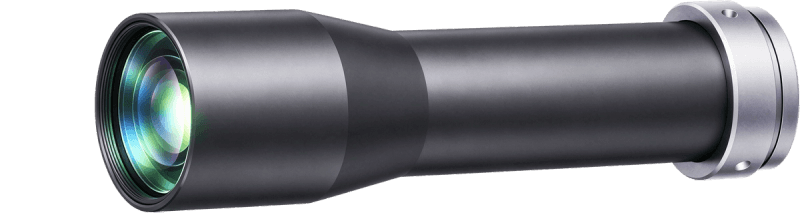

WWH05-150AS
WWH05-150AS
WWH05-150AS industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.50 |
|---|---|
| Working Distance(mm) | 150 |
| Max Sensor Size | 11.0(2/3") |
| F-Number | 13.4 |
| Telecentricity(°) | Non-telecentric |
| Distortion(%) | 0.4 |
| MTF30 (Image-side)(lp/mm) | 65 |
| Depth of Field(mm) | 4.29 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 107.4 |
| NA | 0.01848 |
|---|---|
| Filter Thread | M26x0.5 |
| Coaxial Light Support | No |
| Iris | No |
