WWH 5-Megapixel Telecentric Lenses
WWH05-110ATV3-G
WWH05-110ATV3-G

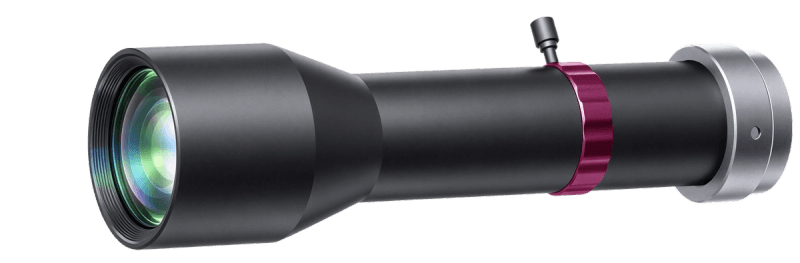

WWH05-110ATV3-G industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.5 |
|---|---|
| Working Distance(mm) | 110 |
| Max Sensor Size | 11.0(2/3") |
| F-Number | 9.6-32 |
| Telecentricity(°) | 0.22 |
| Distortion(%) | 0.25 |
| MTF30 (Image-side)(lp/mm) | 73.8-31 |
| Object Resolution(μm) | 12.9-41.94 |
| Depth of Field(mm) | 3.1-10.2 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 135.2 |
| NA | 0.026-0.008 |
|---|---|
| Filter Thread | M32x0.5 |
| Coaxial Light Support | No |
| Iris | Yes |
