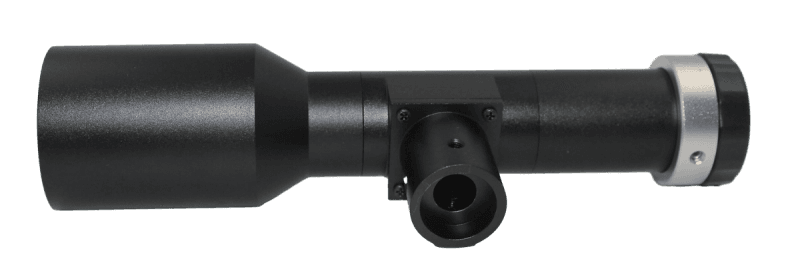

WWH 5-Megapixel Telecentric Lenses
WWH045-135CT
WWH045-135CT
WWH045-135CT industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.45 |
|---|---|
| Working Distance(mm) | 135 |
| Max Sensor Size | 11.0(2/3") |
| F-Number | 15.3 |
| Telecentricity(°) | <0.1 |
| Distortion(%) | 0.7 |
| MTF30 (Image-side)(lp/mm) | 60 |
| Depth of Field(mm) | 6.04 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 115.8 |
| NA | 0.01467 |
|---|---|
| Filter Thread | M32 P0.5 |
| Coaxial Light Support | Yes |
| Iris | No |
