VICO

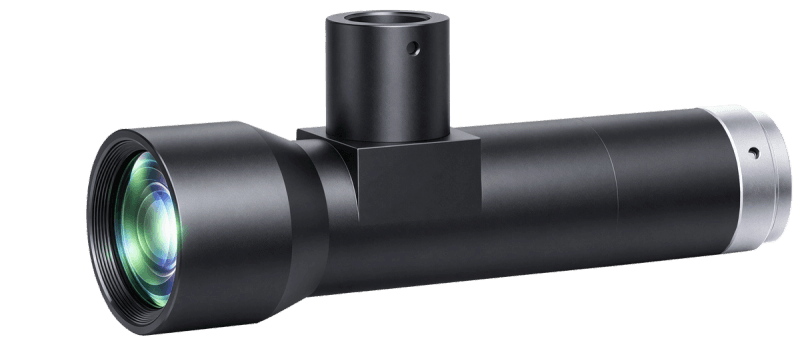

WWH 5-Megapixel Telecentric Lenses
WWH035-110CT-120
WWH035-110CT-120
WWH035-110CT-120 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.35 |
|---|---|
| Working Distance(mm) | 110 |
| Max Sensor Size | 8(1/2") |
| F-Number | 10 |
| Telecentricity(°) | 0.01 |
| Distortion(%) | 0.03 |
| MTF30 (Image-side)(lp/mm) | 84 |
| Object Resolution(μm) | 19.2 |
| Depth of Field(mm) | 6.5 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 128.3 |
| NA | 0.0175 |
|---|---|
| Filter Thread | M32.0 P0.5 |
| Coaxial Light Support | Yes |
| Iris | No |
