VICO
WWH 5-Megapixel Telecentric Lenses
WWH03-65CTV3
WWH03-65CTV3

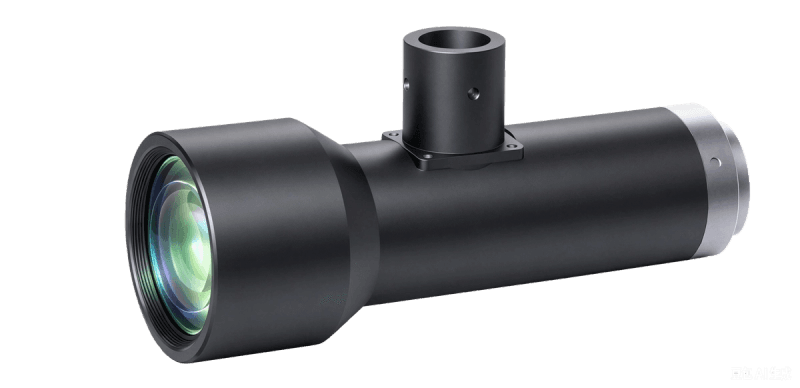

WWH03-65CTV3 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.3 |
|---|---|
| Working Distance(mm) | 65 |
| Max Sensor Size | 11(2/3") |
| F-Number | 13 |
| Telecentricity(°) | 0.2 |
| Distortion(%) | 0.1 |
| MTF30 (Image-side)(lp/mm) | 73 |
| Depth of Field(mm) | 11.6 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 114.6 |
| Object Field of View(Φmm) | 36.7 |
|---|---|
| NA | 0.011492 |
| Length of I/O(mm) | 197.126 |
| Filter Thread | M43x0.5 |
| Coaxial Light Support | Yes |
| Iris | No |
