WWH 5-Megapixel Telecentric Lenses

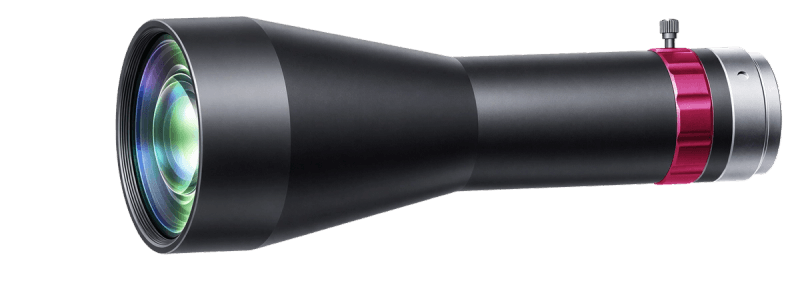

WWH03-110ATV3-G
WWH03-110ATV3-G
WWH03-110ATV3-G industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.3 |
|---|---|
| Working Distance(mm) | 110 |
| Max Sensor Size | 11.0(2/3") |
| F-Number | 9-32 |
| Telecentricity(°) | 0.1 |
| Distortion(%) | 0.04 |
| MTF30 (Image-side)(lp/mm) | 92-31 |
| Object Resolution(μm) | 20.1-71.1 |
| Depth of Field(mm) | 8-28.4 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 135.4 |
| NA | 0.01667-0.00472 |
|---|---|
| Filter Thread | M45x0.5 |
| Coaxial Light Support | No |
| Iris | Yes |
