TUH Industrial Tube Lenses

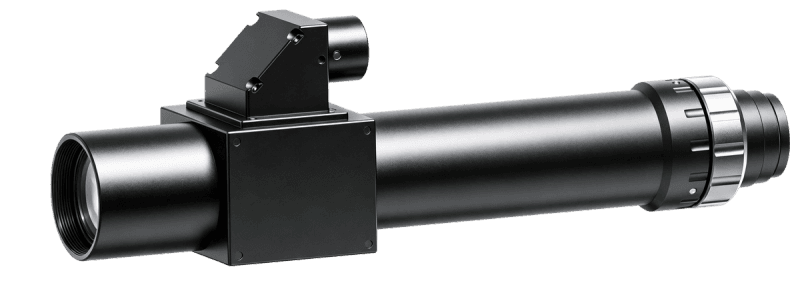

TUH200-50CT-230V3
TUH200-50CT-230V3
TUH200-50CT-230V3 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 20 |
|---|---|
| Working Distance(mm) | 50 |
| Max Sensor Size | 11(2/3") |
| F-Number | 41 |
| Telecentricity(°) | 0.06 |
| Distortion(%) | 1.27 |
| MTF30 (Image-side)(lp/mm) | 22 |
| Object Resolution(μm) | 1.4 |
| Depth of Field(mm) | 0 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 230.2 |
| Object Field of View(Φmm) | 0.6 |
|---|---|
| NA | 0.25 |
| Filter Thread | M35.5 P0.5 |
| Coaxial Light Support | Yes |
| Iris | No |
