TUH Industrial Tube Lenses
TUH150-50CT-230
TUH150-50CT-230

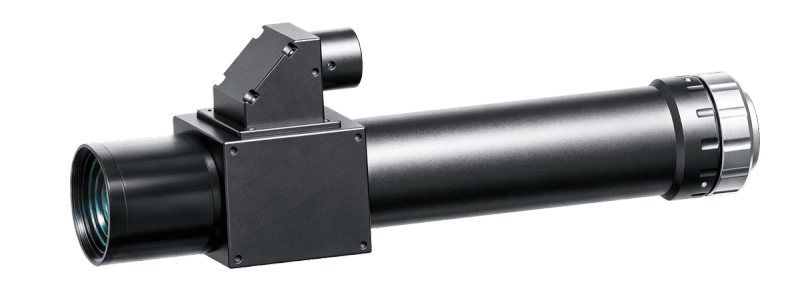

TUH150-50CT-230 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 15 |
|---|---|
| Working Distance(mm) | 50 |
| Max Sensor Size | 11(2/3") |
| F-Number | 30.9 |
| Telecentricity(°) | 0.08 |
| Distortion(%) | 0.011 |
| MTF30 (Image-side)(lp/mm) | 30.3 |
| Object Resolution(μm) | 1.46 |
| Depth of Field(mm) | 0.0166 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 226.0 |
| Object Field of View(Φmm) | 0.733 |
|---|---|
| NA | 0.24 |
| Filter Thread | M34 P0.5 |
| Coaxial Light Support | Yes |
| Iris | No |
