TUH Industrial Tube Lenses
NIR-WWK15-110CP-111-G
NIR-WWK15-110CP-111-G

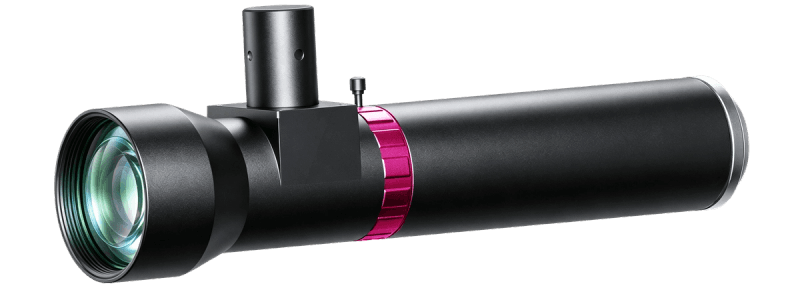

NIR-WWK15-110CP-111-G industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 1.5 |
|---|---|
| Working Distance(mm) | 110 |
| Max Sensor Size | 18.4(1.1") |
| F-Number | 8-32 |
| Telecentricity(°) | 0.11-0.14 |
| Distortion(%) | 0.04-0.03 |
| MTF30 (Image-side)(lp/mm) | 78.9-13.7 |
| Depth of Field(mm) | 0.3-1.1 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 182.5 |
| Object Field of View(Φmm) | 12.3 |
|---|---|
| NA | 0.0933-0.0234 |
| Working Wavelength(nm) | 850~1300 |
| Filter Thread | M41 P0.5 |
| Coaxial Light Support | No |
| Iris | Yes |
