NIR-WWH60-63CT-IR1170
NIR-WWH60-63CT-IR1170

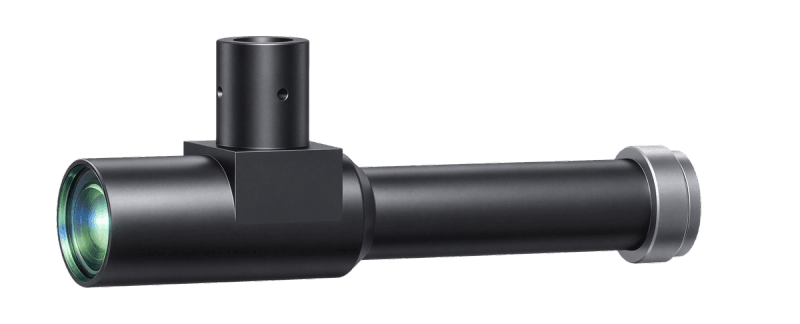

NIR-WWH60-63CT-IR1170 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 6.0 |
|---|---|
| Working Distance(mm) | 63 |
| Max Sensor Size | 11.2(2/3") |
| F-Number | 20 |
| Telecentricity(°) | 0.06 |
| Distortion(%) | 0.08 |
| MTF30 (Image-side)(lp/mm) | 21.5 |
| Object Resolution(μm) | 4.8 |
| Depth of Field(mm) | 0.04 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 149.2 |
| NA | 0.15 |
|---|---|
| Working Wavelength(nm) | 1120-1220 |
| Coaxial Light Support | Yes |
| Iris | No |
