TUH Industrial Tube Lenses
NIR-WWH40-63CT-IR1300
NIR-WWH40-63CT-IR1300

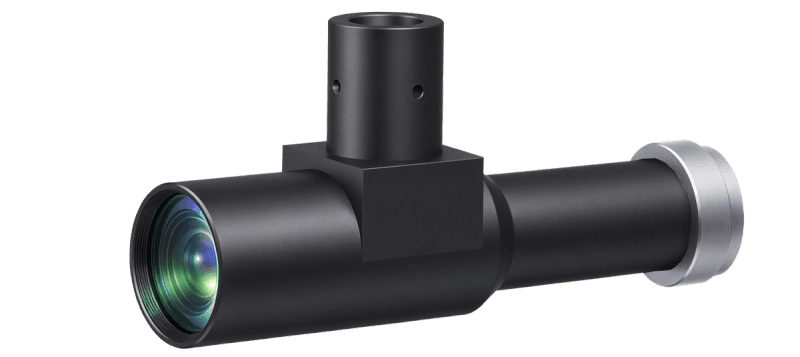

NIR-WWH40-63CT-IR1300 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 4.0 |
|---|---|
| Working Distance(mm) | 63 |
| Max Sensor Size | 11.0(2/3") |
| F-Number | 13.1 |
| Telecentricity(°) | 0.06 |
| Distortion(%) | 0.02 |
| MTF30 (Image-side)(lp/mm) | 30 |
| Object Resolution(μm) | 5.3 |
| Depth of Field(mm) | 0.07 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 122.6 |
| NA | 0.15 |
|---|---|
| Working Wavelength(nm) | 1250-1350 |
| Coaxial Light Support | Yes |
| Iris | No |
