WWH 5-Megapixel Telecentric Lenses
HR-WWH15-230CT-230
HR-WWH15-230CT-230

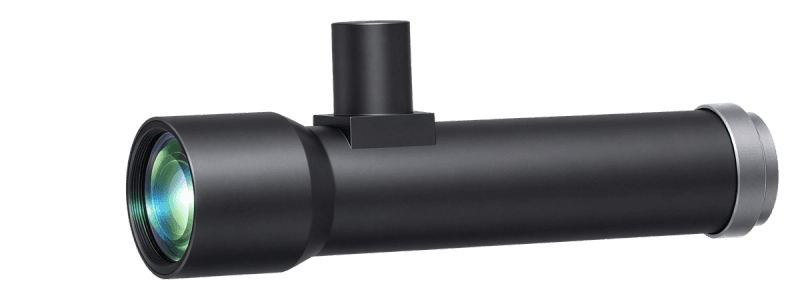

HR-WWH15-230CT-230 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 1.50 |
|---|---|
| Working Distance(mm) | 230 |
| Max Sensor Size | 11.0(2/3") |
| F-Number | 29.9 |
| Telecentricity(°) | 0.1 |
| Distortion(%) | 0.1 |
| MTF30 (Image-side)(lp/mm) | 32 |
| Depth of Field(mm) | 1.10 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 150.7 |
| NA | 0.02516 |
|---|---|
| Filter Thread | M32 P0.5 |
| Coaxial Light Support | Yes |
| Iris | No |
